ECN000-08P2 is a Function slip ring with anti-low temperature and a pair of aviation plug holder for the High altitude airborne equipment from CENO Electronics. During the past 20 years, CENO have research and manufacture around 5000 designs for our global customers. The anti-low temperature is -40°C -in this product and can be even designed to -100°C- as different environment. For more information about how CENO’s slip ring can fit your specific applications, please contact us freely.
Specification
| ECN000-08P2 | Specification |
|---|---|
Current & Circuits | 8 circuit*10A |
Rating Voltage | 0~380VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Contact resistance | 10mΩ (50rpm) |
Contact material | Precious meta |
Housing material | Aluminum Alloy |
Working temperature | -40°C~+80°C |
Working humidity | 60 %RH |
IP protection grade | IP54 |
Operating speed | 0~100rpm |
Lead wire size&length | Rotor : Aviation plug holder Stator : Aviation plug holder |
External diameter | Ø125mm |
Rotation way | Flange installation |

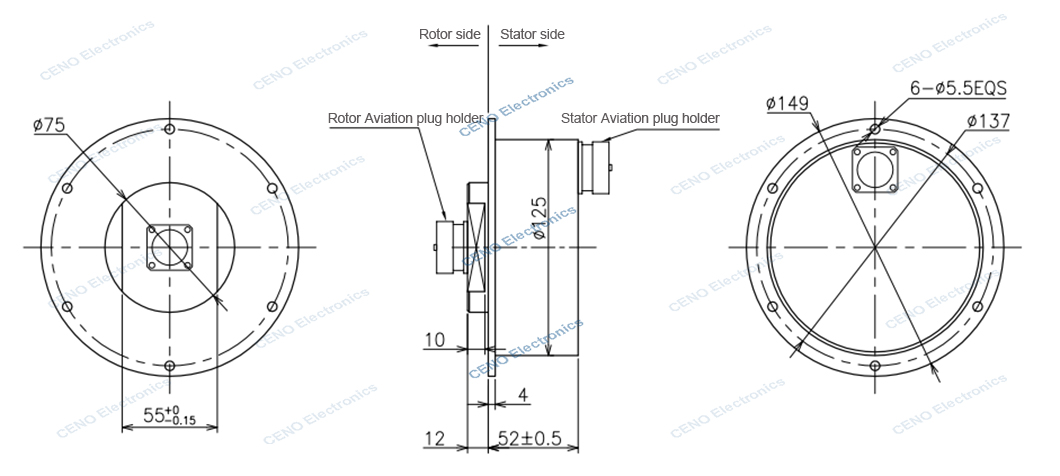

Outline drawing
