ECN series is a family of robust through bore slip rings, with a central hole up to 980 mm.Slip rings of the this series have the characteristics of precious metal contact and a long service life up to 230 million turns. Furthermore,they are water-proof,pressure-proof,and vibration resistant.Customizable lead wires and connectors support any plug-in including flying lead.CENO's waterproof slip ring can reach to IP65, IP67, IP68,it's can work under water 1000M.Typical application such as ship offshore equipment,oil drilling and food processing.
ECN000-05P | Specification |
Circuits & Current | 2*20A,1*PE,2*1A |
Voltage | 120VAC / 24VDC |
Electrical noise | Max 10mΩ (50rpm) |
Dielectric strength | ≥1000V@50Hz ≥500V@50Hz (signal) |
Isolation resistance | 500MΩ@500VDC 100MΩ@300VDC (signal) |
Operating speed | 0-10 rpm |
Contact material | Precious metal |
Housing material | Aluminium housing |
IP protection grade | IP65 |
Through hole size | None |
Working temperature | -20C°~ +60C° |

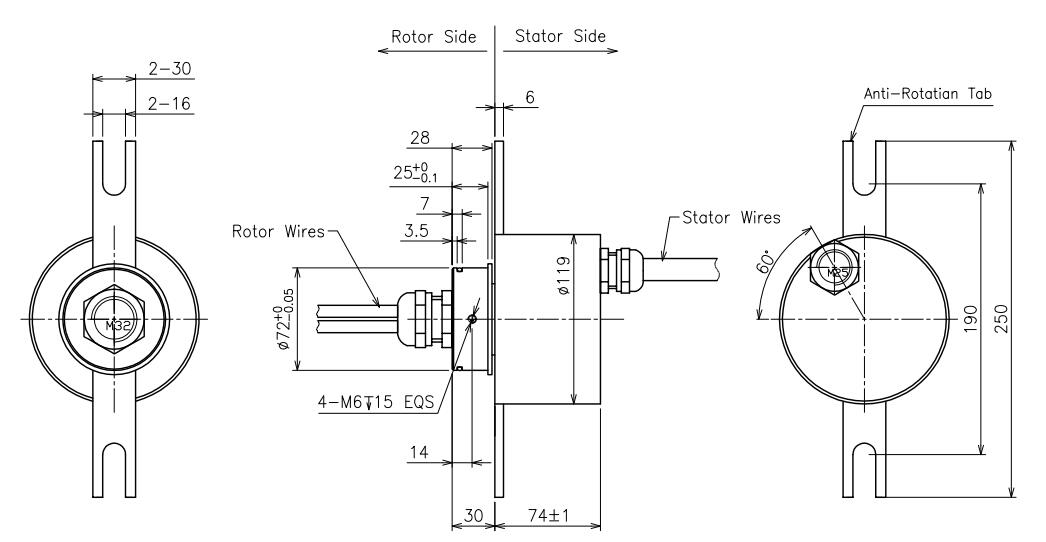

Outline drawing
