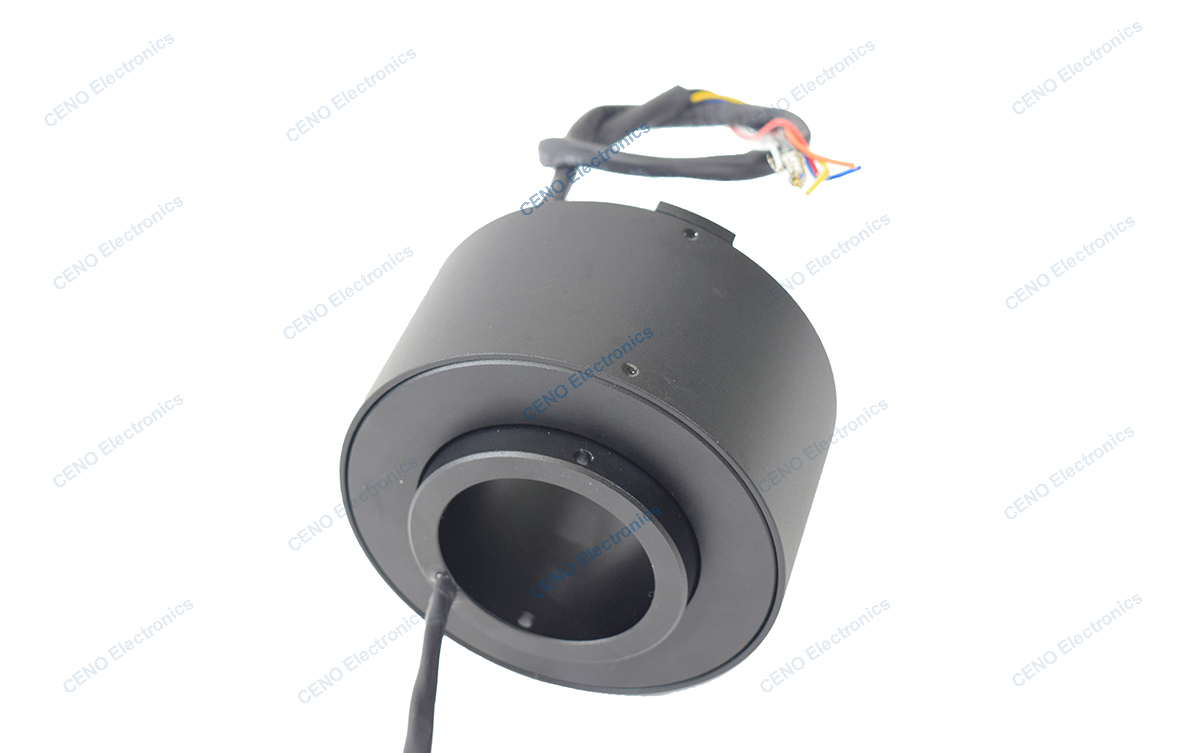

ECN012-04S-A is CENO's new developed product signal slip ring with through hole 12mm and flange for industry applications, applications where precision control the working speed, data transmit, and current or Rotating Voltage are critical. For it’s compact structure, metal housing, quiet mechanical system operation and stable transmission, always apply to the harsh environment, the mines, mountain areas or medical equipment. For more information about how CENO's slip ring can fit you specific application, please contact us freely
Specification
| ECN012-04S-A | Specification |
|---|---|
Current & Circuits | 4 circuits*500mA |
Rating Voltage | 0~24VAC/VDC |
Dielectric strength | ≥300V@50Hz |
Isolation resistance | ≥100MΩ@100VDC |
Electrical Noise | ≤30mΩ ( 50rpm ) |
Operating speed | 0~300rpm |
Contact material | Precious Metal |
Housing material | Aluminum Alloy |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Lead wire size | AWG24# Wire Teflon® UL |
Lead wire length | Rotor : 300mm; Stator : 300mm |
Inner diameter | Ø12.7mm |
Rotation way | Fix up stator side with anti-rotation tab to drive rotor running |
Outline drawing
