ECN000-30P-01EG-16F-Integrate-FORJs-Slip-Ring

ECN000-30P-01EG-16F is CENO new customized integrate FORJs slip rings which combined 10A electric, 2A signal, 1000M Ethernet with 16 channels FORJs. CENO reliable slip rings with high-quality, cost effective option, constructed for high-volume manufacturing and quick lead times for OEMs. Designed to meet the requirements of Robotics, Radar system, Rotating turret on the vehicle or Remote control system etc. IP51 or higher level of Ingress Protection (Depending on electrical connection used) and the ability to operate in temperatures from -30°C to +40°C. More information please contact us.

Product Details

Specification

ECN000-30P-01EG-16F	Specificatin
Current & Circuits	12 circuits * 10A; 18 circuits * 2A; 1 circuit * 1000M Ethernet
Rating Voltage	0-220VAC/VDC
Dielectric strength	≥1000VAC@50Hz (Power) ≥300VAC@50Hz (Signal)
Isolation resistance	≥500MΩ@500VDC (Power) ≥100MΩ@300VDC (Signal)
Contact resistance	≤30mΩ (50rpm)
Contact material	Precious metal
Housing material	Aluminum alloy
Working temperature	-30°C~+40°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~100rpm

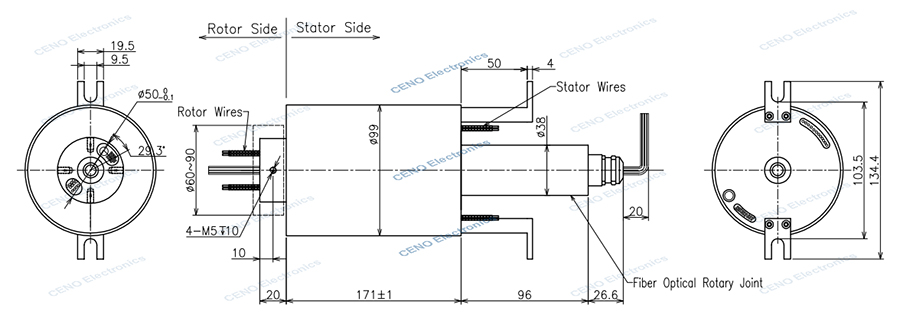

External diameter	Ø99mm
Lead Wire Size	AWG17# 22# Wire Teflon® UL; CAT5e
Lead wire	Rotor:1000mm; Stator:1150mm
Fiber Optic Rotary Joint
Fiber type	9/125 um
Fiber channel	16
Wavelength	1310~1550nm
Insertion Loss	< 4dB
Insertion Loss change	< 2dB
Return Loss	>40dB
Crosstalk	>40dB
Peak power, max	23 dBm
Lead Wire length	Rotor: 1000mm; Stator:1000mm
Protection	IP50
Connector	ST / PC
