Rotary mechanical assemblies across industrial automation, security surveillance, amusement facilities and multiple other sectors face persistent wiring hurdles in regular operation. Conventional fixed cabling gets twisted, strained and fractured during repeated spindle rotation, which raises recurring maintenance work, triggers unexpected machine shutdowns and disrupts steady signal delivery. The ECN012-02P-04S through-hole slip ring manufactured by CENO Electronics addresses these pain points through optimized electromechanical design, serving as a premium electromechanical component for wiring upgrades on rotary equipment.

Structural Layout and Key Specifications

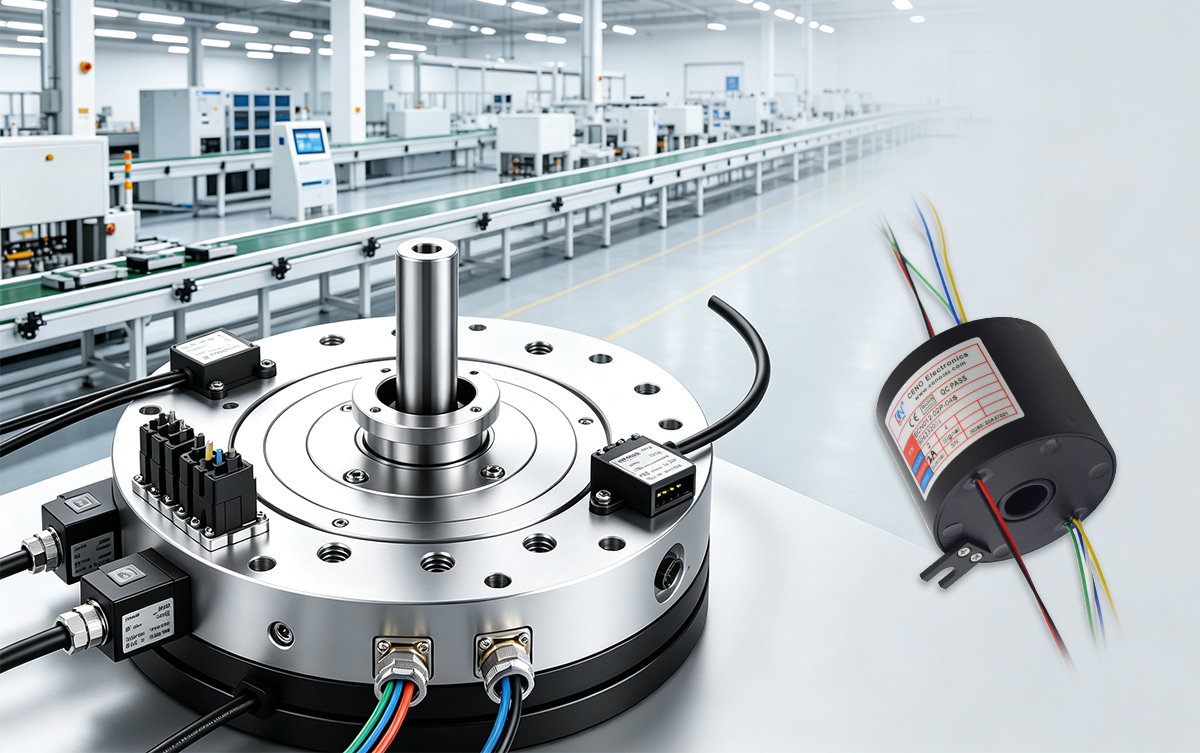

This compact slip ring adopts a cylindrical black outer housing that shields internal precision brush assemblies and conductive rings from ambient dust in typical industrial settings. A 12 mm central through-bore enables direct shaft penetration for streamlined installation, outperforming externally flanged slip rings for machinery with centrally mounted rotary spindles. A fastened retention bracket with dual screws is mounted on the housing edge to rigidly fix the stator part and suppress vibration-induced contact instability throughout service cycles.

Per factory labeling, the unit features independent power and signal circuits: 2 dedicated power channels with a maximum rating of 2 A per circuit deliver stable power to rotating-side mini actuators, while 4 isolated signal lanes transmit delicate low-voltage control signals. Color-coded outgoing leads in red, black, green, blue and yellow simplify wiring differentiation and reduce human wiring faults. The product holds CE and RoHS conformity certifications and has passed stringent in-house QC inspections. Unique serial numbers are assigned to individual units to facilitate full lifecycle traceability of manufacturing batches.

Operational Mechanism

Internally separated rotor and stator modules guarantee dependable electrical connectivity. Conductive ring tracks rotate synchronously with equipment spindles, while stationary spring-loaded brushes maintain consistent physical contact with ring surfaces. Continuous power and signal transfer is therefore sustained even under unrestricted 360° rotation, removing the risk of external cable tangling. Physically segregated power and signal pathways minimize electromagnetic crosstalk and preserve signal integrity.

Industrial Implementation Scenarios

1.Automated Rotary Workstations: The through-bore mounting scheme preserves native spindle structures of indexing rotary fixtures on assembly lines. Power circuits energize on-table solenoid valves and sensors, and signal channels relay feedback data to PLC controllers, cutting downtime caused by recurring cable replacements.

2. Surveillance PTZ Cameras: The slim footprint of the slip ring fits compact inner spaces of pan-tilt camera modules. It supplies power to lighting fixtures and drive motors while transmitting video feeds and positioning commands, boosting the service lifespan of outdoor monitoring systems.

3. Robotic Rotary Joints: Internal shaft passage conceals cabling inside collaborative robot rotary joints to prevent wire abrasion from moving robotic frames. Signal paths collect force readings from end grippers, and power loops operate gripping actuators reliably.

4. Amusement Rides, Medical Rotary Devices and Packaging Machinery: Certified material compliance meets strict industry safety benchmarks for recreational equipment. The slip ring also performs reliably on rotary packaging stations, compact medical rotating instrumentation and miniature radar rotary pedestals under moderate vibrational loads.

Installation and Maintenance Guidelines

Lock down the stator firmly via the side mounting tab during assembly and confirm spindle dimensions match the 12 mm bore tolerance. Separating power wiring from signal cabling during installation further suppresses electromagnetic interference. Extra protective casings are recommended for deployments with heavy dust or corrosive atmospheres to extend operational longevity.

With practical hollow-shaft architecture, partitioned circuit layouts and rigorous factory quality checks, the ECN012-02P-04S slip ring delivers outstanding installation adaptability and stable transmission output. It is an optimal selection both for retrofitting legacy rotary equipment and designing brand-new automated systems, delivering dependable long-term performance across a broad spectrum of rotary electromechanical projects.
