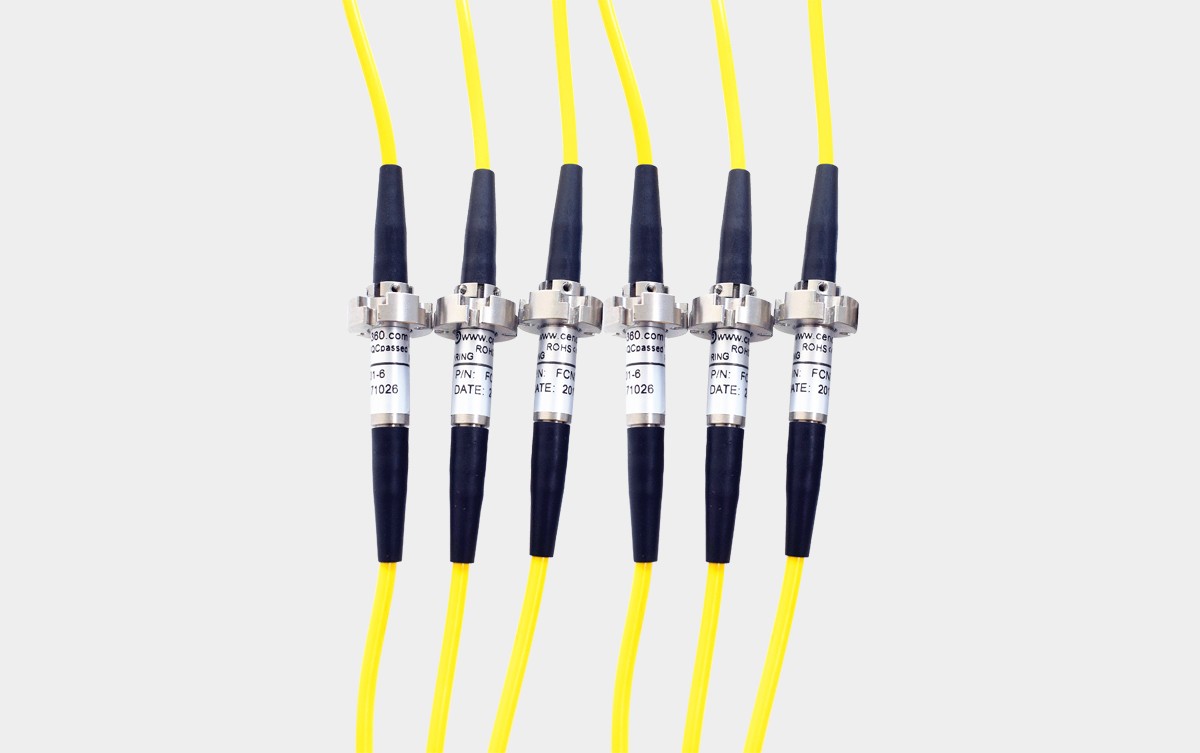

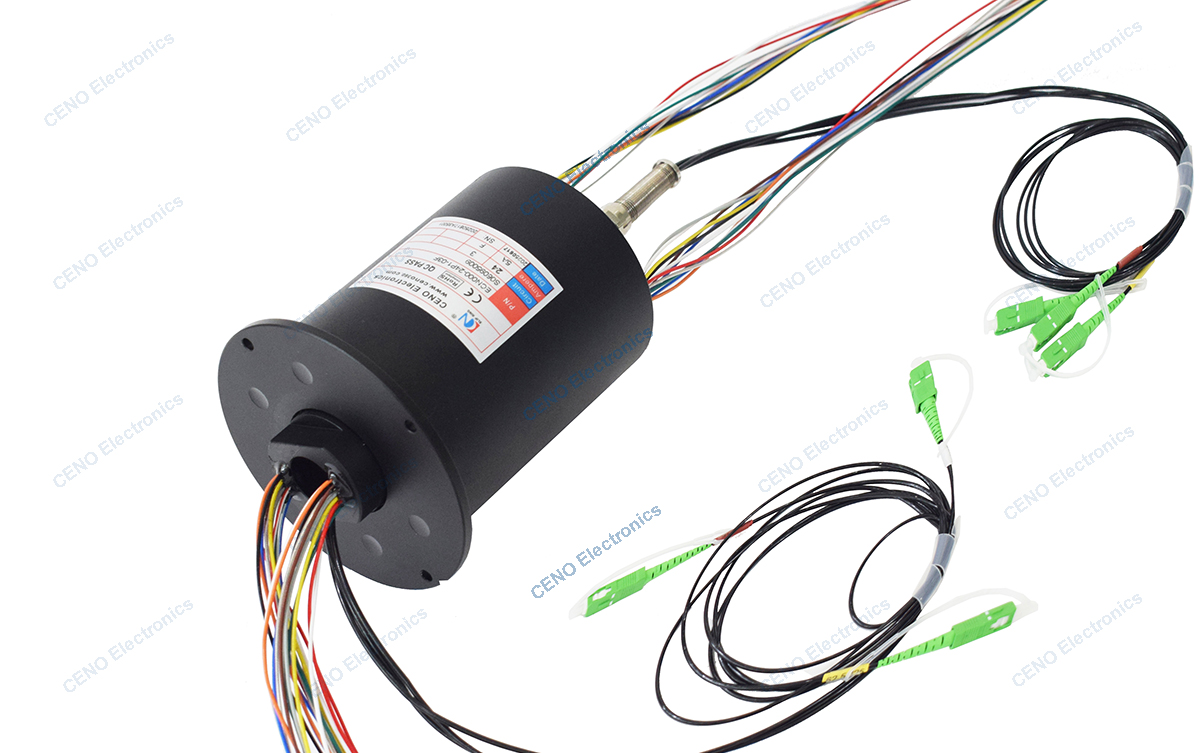

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
Characteristic
Integrate differrent size current and signal
Integrate Optic fiber size and circuit channel
Well performance with various function
Optional
Circuit channel
Protetion grade
Installation way
Signal type and Option Type
| Model | ID(mm) | OD(mm) | CKT No. | Current/Signal | Voltage | Fiber Type | Wavelength | Working speed(RPM) | Spec |
|---|---|---|---|---|---|---|---|---|---|
| ECN000-01S-01F | 0 | 55 | 2 | 1* RF signal，1*Fiber | 240VAC | SMF28/MM | 650/1650nm | 0-6000 |  |
| ECN000-02P1-01F | 0 | 38.5 | 3 | 2 * 3A, 1 * Fiber optic | 0~300 VAC/VDC | / | / | 0-30 | |
| ECN000-02P3-01F | 0 | 53 | 3 | 2*12A,1*fiber optic | 0-400VAC/VDC | SM | 1310/1550 nm | 0-1000 | |
| ECN000-02P4-01F | 0 | 56 | 3 | 2* 22A; 1*Fiber optic | 0-400VAC/VDC | SM | 1310/1550 nm | 0~1000 |  |
| ECN000-03P3-01F | 0 | 86 | 4 | 3*15A,1 group fiber optic | 0~400VDC | SM | 1310/1550nm | 0-300 | |
| ECN000-02S-02P-01F-A | 0 | 55 | 5 | 1*RG178,1*Fiber optic,1*signal,2*2A | 0~240VAC/VDC | SM/MM | 850/1550nm | 0-160 | |
| ECN000-02P-02P1-01F | 0 | 60 | 5 | 2*25A; 2*5A; 1*Fiber optic | 0~800 VDC | FC/PC | 1310~1550nm | 0-250 | |
| ECN000-02S-02P-01F | 0 | 70 | 5 | 1* high frequency signal， 1*pulse signal,1*Fiber, 2*2A | 0~240VAC/VDC | SMF28 | 1310nm | 0-160 | |
| ECN000-01P2-04F | 0 | 135 | 5 | 1*10A,4*Fiber optic | 0~380VAC/VDC | SM&MM | 850/1550nm | 0-10 | |
| ECN000-02P-04S-01F-IP66 | 0 | 86 | 7 | 2*100mA,4*20mA,1*Fiber optic | 0~200VAC/VDC | MM | 850/1310nm | 0-50 | |
| ECN000-03100-05S-04F-GY-IP56 | 0 | 180 | 12 | 3*100A; 5*Signal; 4 * Fiber Optic | 0-5000VAC/VDC | SM/MM | 1310/1550nm; 850/1300nm | 0~100 | |
| ECN000-02P2-08S-04F | 0 | 55 | 14 | 2*10A, 2*RS422 Signal, 4*Fiber opric | 0~200VAC/VDC | SM | 1310/1550nm | 0-200 | |
| ECN000-08P3-06F | 0 | 99 | 14 | 8*15A, 6*fiber optic | 0~380VAC/VDC | SM | 1310/1550 nm | 0-250 | |
| ECN000-0550-10F | 0 | 125 | 15 | 5*50A; 10*MM | 0-400VAC/VDC | MM | 850/1300nm | 0~100 | |
| ECN000-0350-03P4-02P2-04S-04F-GY-IP67 | 0 | 130 | 15 | 3*50A, 3*20A, 1*PE, 2*10A, 2*485Signal | 0~3300 VAC/VDC | FC / APC | 1310/1550nm | 0-150 | |
| ECN000-30P-01EG-16F | 0 | 99 | 16 | 12* 10A; 18 * 2A; 1 * 1000M Ethernet; 16 * Fiber optic | 0-220VAC/VDC | ST / PC | 1310/1550nm | 0~100 | |
| ECN000-04P4-08S-04F-IP66 | 0 | 100 | 16 | 4*20A; 8*Signal (10A); 4*Fiber | 0~380VAC/VDC | FC / FC | 1310/1550nm | 0-50 | |
| ECN000-09P2-12S-01EG-01F | 0 | 56 | 23 | 9 *10A,8*signal, 2*RS422,1*Cat6e 1*Fiber Optical | 0~240VAC/VDC | SM | 1310/1550nm | 0-150 | |
| ECN000-02P-20S-02EG-01F | 0 | 56 | 24 | 2*30A,20*signal,2*Gigabit | 380VAC | SM | 1310/1550nm | 0~300 | |
| ECN000-02P-20S-04EG-01F | 0 | 56 | 26 | 2*30A,20*signal,4*Gigabit | 380VAC | SM | 1310/1550nm | 0~300 | |
| ECN000-11P1-14S-01EG-01F | 0 | 56 | 27 | 11*5A,10*signal,2*RS422 signal, 1*1000M Ethernet,1*Fiber | 0~240VAC/VDC | SM | 1310/1550nm | 0-150 | |
| ECN000-04P2-02P1-23S-01F | 0 | 58 | 30 | 4*12A; 2*2A (24V) 23* Signal; 1*Fiber | 0~1000 VAC/VDC | SM | 1310-1550nm | 0~150 | |
| ECN000-10P2-20S-01EG-02F | 0 | 80 | 33 | 10*10A; 30* signal; 1*1000M Ethernet; 2*SM | 220VAC/VDC | SM | 1310/1550nm | 0 ~ 200 | |
| ECN000-06P-26S-01EG-01F | 0 | 99 | 34 | 6*40A,1*PE,2*RS422,1*RS232,5*3A,4 *signal,1*Gigabit Ethernet,1*fiber optic | 0~240VAC/VDC | SM | 1300/1600nm | 0-20 | |
| ECN000-13P-24S-01F | 0 | 62 | 38 | 7*20A, 4*2A, 2*7A, 24*1A, 1*Fiber optic | 380VAC | SM | 1310/1550nm | 0~100 | |
| ECN000-13P-24S-01F-LC | 0 | 62 | 38 | 7*20A, 4*2A, 2*7A, 24*1A, 1*Fiber optic | 380VAC | SM | 1310/1550nm | 0~100 | |
| ECN000-08P2-30S-03EM-01F | 0 | 35 | 41 | 8*10A, 30*1A, 3*100M Ethernet | 0~220VAC/VDC | SM | 1310/1550nm | 0~100 | |
| ECN000-02P1-04P2-07P-28S-01F | 0 | 62 | 42 | 2*20A,2*10A,2*5A,2*4A,3*7A, 25*signal，2*land wire（2A),1*Video signal | 380VAC | SM | 1310/1550nm | 0~300 | |
| ECN000-02P3-04P2-05P-33S-01F | 0 | 56 | 45 | 4*10A,2*15A,2*2A,3*7A, 33*signal, 1*Video signal | 380VAC | SM | 1310/1550nm | 0~300 | |
| ECN000-01P-11P2-34S-02F | 0 | 99 | 48 | 1*30A,7*10A,30*1A,4*2A,4*6A | 500VAC/50VDC | MM | 850/1310nm | 0~200 | |
| ECN000-03P1-14P2-02P-38S-04HD-01F | 0 | 62 | 61 | 14*10A,3*5A,2*2A,38*signal，4*video signal | 380VAC | SM | 1310/1550nm | 0~300 | |
| BHCN-C-36P-05EG-20F | 0 | 600 | 61 | 11x250A, 25x10A, 5xGigabit, 20x Fiber optic | 0~380VAC | SM | 1310/1550nm | 0~5 | |
| ECN000-05P-12P2-70S-02F | 0 | 99 | 89 | 1*30A,12*10A,4*6A,63*1A,7*2A | 500VAC/50VDC | MM | 850/1310nm | 0~120 | |
| ECN000-128P-30S | 0 | 275 | 158 | 24 Circuits * 10A 105 Circuits * 2A 30 Circuits * IF Signal | 0~380VAN/VDC | - | Frequency Range: DC-40MHz | 0~50 | |
