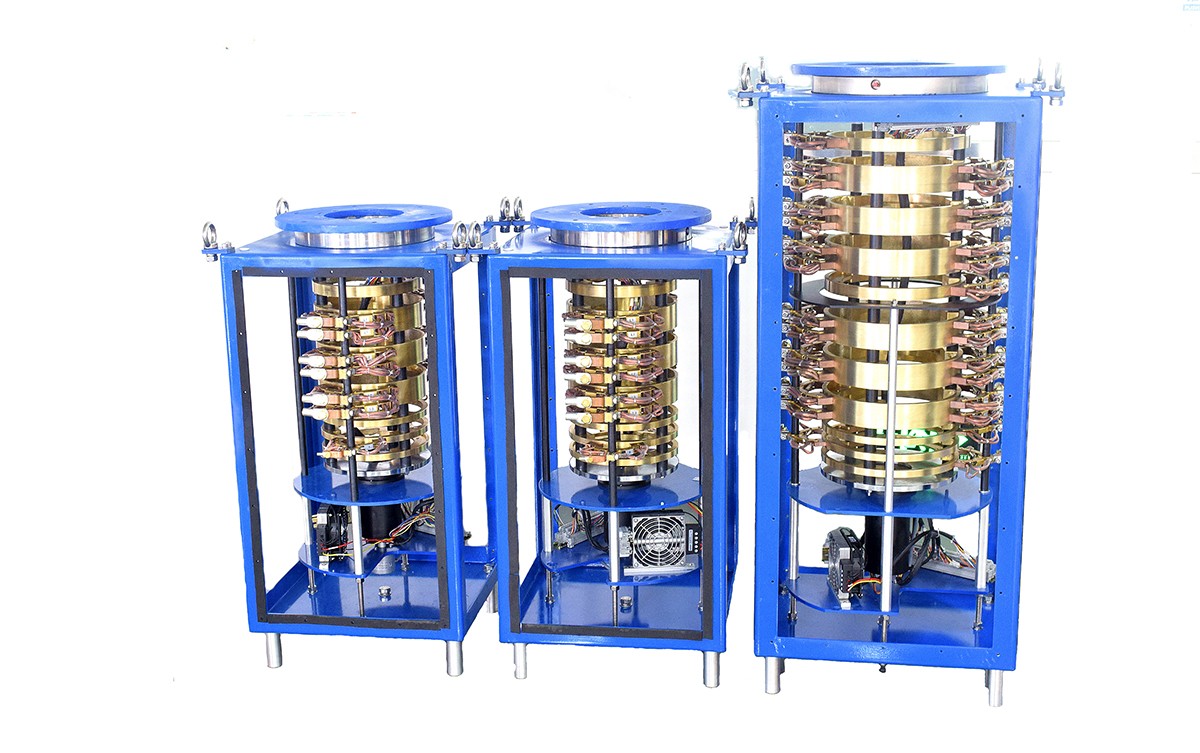

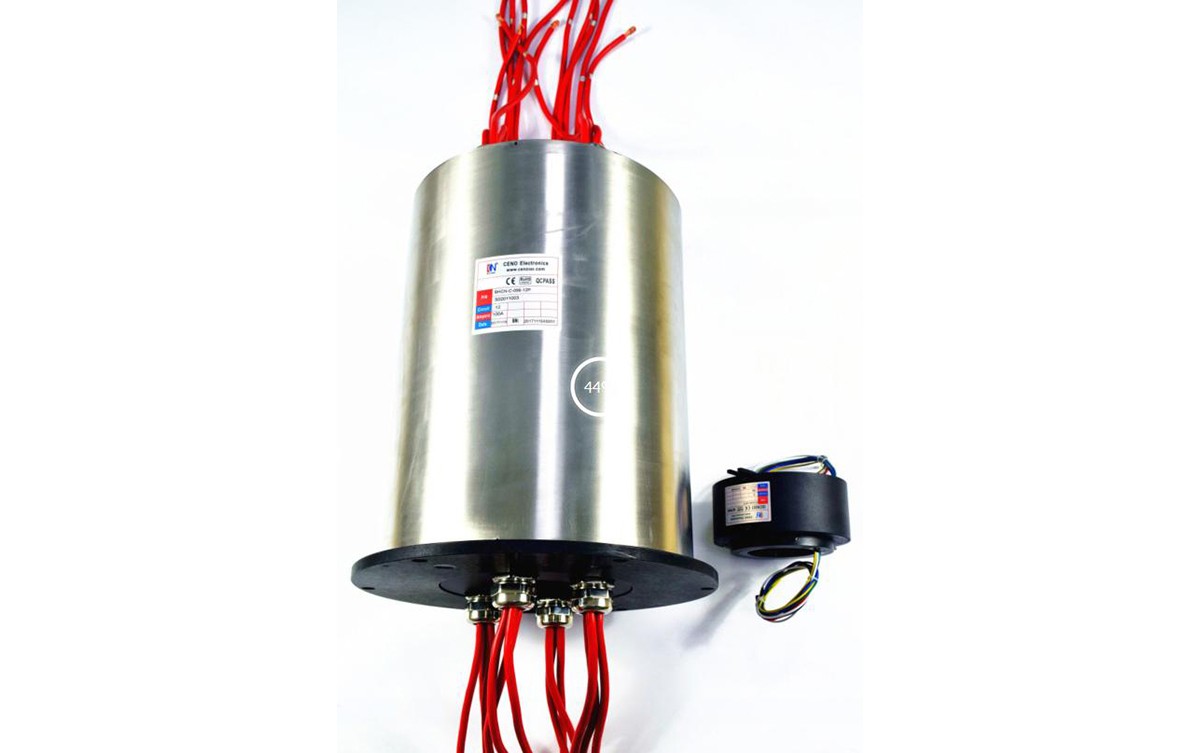

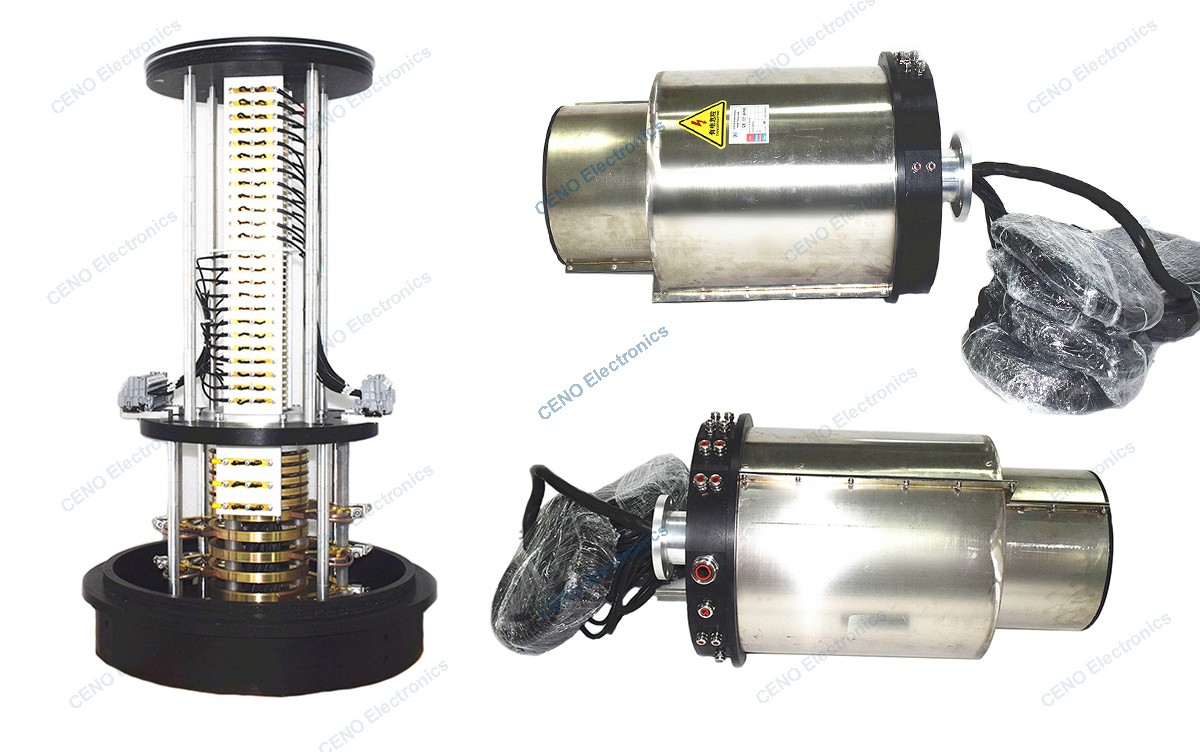

Carbon brush slip rings

CENO's carbon Brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at lease on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.

Product Details

CENO has rich experience in design and manufacture of large current carbon brush slip ring.Which is adopted the unique structural design and scientific simulation calculation to fully make sure transmiting stably the current through each loop current. According to different field application, adopt overall design ideas on the carbon brush design. It is classified into BHCN series in CENO's product family.The design concept base on the carbon brush working environment to compact the size and provides maintenance window.

Option

Current: 1-2000A

Voltage: 24-20000V

Capable of integrating special signal such as RS, USB, Ethernet and so on.

Felxible to combine encoder, fiber rotary joint, RF rotary joint, pnuematic & hydraulic rotary joint etc.

Model	ID(mm)	OD(mm)	CKT No.	Current/Signal	Voltage	Working speed Rpm
BHCN-C-04P	0	400	4	4 * Electric	0~380VAC/DC	0-60
BHCN-C-08250-IP66	0	410	8	8 * Electric	0-480 VAC/VDC	0~10
BHCN-C-10P-03EM	0	440	13	13 * Electric & Ethernet	0~650 VAC/VDC	0~15
ECN000-07P-17S	0	135	24	24 * Electric & Signal	0~380VAC/VDC	0~250
BHCN-C-04P-32S-04EG	0	350	40	40 * Electric & Ethernet	0-380VAC 0-220VAC/VDC	0~50
BHCN-C-42P	0	420	42	42 * Electric & Profinet	0~380VAC/VDC	0~15
BHCN-C-06P-36S	0	600	42	42 * Electric & Signal	600VAC; 24VDC	0-20
BHCN-C-36P-05EG-20F	0	600	61	61 * Electric & Signal (Ethernet & Fiber Optic)	0~380 VAC/VDC 0~220VAC/VDC	0~5
BHCN-C-05116-33P-37S-GW	0	450	75	75 * Electric & signals	0~400VAC/VDC	0~5
ECN000-15P4-87S	0	440	102	15 20A; 87Signals	0 ~ 220VAC/VDC	0~30
BHCN-C-05200	0	604*604	5	5 * 200A	0~380VAC/VDC	0~5
BHCN-C-0663-0610	0	370*429	12	12 * Electric	440VAC; 380VAC	0-5
BHCN-C-0365-03P4-12P2	0	330*304	18	18 * Electric	0~480 VAC/VDC	0-1
BHCN-C-0463-1420	0	580*434	18	18 * Electric	690VAC 0~380VAC/VDC	0-5
BHCN-C-14200-02P2-15S	0	604*604	28	28 * Electric & Signal (Encoder, Ethernet)	0~380 VAC/VDC 0~220 VAC/VDC	0~5
BHCN-C-26P-04EG-VZ	0	500*500	31	6 * High current 25 * Electric & Ethernet	0-400VAC/VDC	0~10
BHCN-C-26P-04EG-01EM-VB	0	500*500	31	6 * high current; 20 * electric 5 * Ethernet	0-380VAC/VDC	0~10
BHCN-C-04300-0350-02P2-22S	0	500*580	31	31 * Electric & Signal	0-690VAC/VDC (Stator) 0-220VAC/VDC (Rotor)	0~10
BHCN-C-07P-37S	0	432*562	44	44 * Electric & Signal	500VAC	0-15
BHCN-C-10P-34S	0	502*582	44	44 * Electric	500VAC; 220VAC/24VDC	0-15
BHCN-C-07P-42S-68K	0	502*502	49	49 * Electric & Signal (Encoder, Ethernet)	500VAC; 220VAC/24VDC	0~15
BHCN-C-07P-42S-84.5K-23026	0	580*500	49	49 * High Current & Encoder & Heater	0~500VAC/VDC 220VAC/ 24VDC	0~15
BHCN-C-04400-0560-42S	0	500*604	50	50 * Electric Power	0 ~ 400 VAC/VDC 0 ~ 220 VAC/VDC	0~5
BHCN-C-14P-40S	0	604*604	54	54* Electric & Signal	400VAC/VDC; 24VDC	0~5
BHCN-C-11P-57S	0	450*630	68	68* Electric & Signal	500VAC; 220VAC/24VDC	0-15
BHCN-C-07P-54S-38K_23022	0	582*502	99	99 * Power & Signal	500VAC; 220VAC/24VDC	0-15
BHCN-C-26P-47P3-48S	0	560*1907	121	121* Electric & Signal	0-400VAC/VDC, 0-230VAC/VDC	0~6
SCN050-05100-ZZ	50	121	5	5 * 100A	0 ~ 400VAC/VDC	0~400
SCN050-0460-ZZ	50	140	4	4 * 60A Electric	0-500VAC/VDC	0 ~ 400
SCN052-03100	52	101	3	3 * Electric	0~500VAC/VDC	0 ~ 3000
ECN060-C-08P4	60	/	8	8 * 25A	0~230VAC/VDC	0 ~200
BHCN-C-70-04120	70	360	3	3 * Electric	0~400VAC/VDC	0~5
BHCN-C-096-12P	96	330	12	12 * Electric	380VAC	0-30
BHCN-C-096-12100	96	330	12	12 * High current	380VAC	0-30
BHCN-C-190-16P2	190	525	16	16 * 10A	380VAC	0~5
BHCN-C-200-0763-25S	200	630*754	32	6 * 63A; 1 * PE; 25*Signal	380VAC	0~5
ECN240-03P2-06P1	240	310	9	9 * Electric & Signal	0~380 VAC/VDC	0~100
BHCN-C-250-0663-12P2-231701Q01	250	600	18	18 * Electrical Power	0~380VAC/VDC	0 ~ 5
BHCN-C-260-02P2	260	390	2	2 * Electric	1000VAC	0~10
BHCN-C-260-04P	260	390	4	4 * Electric	1000VAC	0~10
BHCN-C-260-08P	260	390	8	8 * Electric	1000VAC	0-8
BHCN-C-07260-0360-02P3-12S	0	550*550	24	6x260A + 1xPE(260A) + 3x60A	0~380V AC/DC	0～1
BHCN-C-260-08P-CB-DW	260	390	8	8 * Electric	1000VAC	0-8
