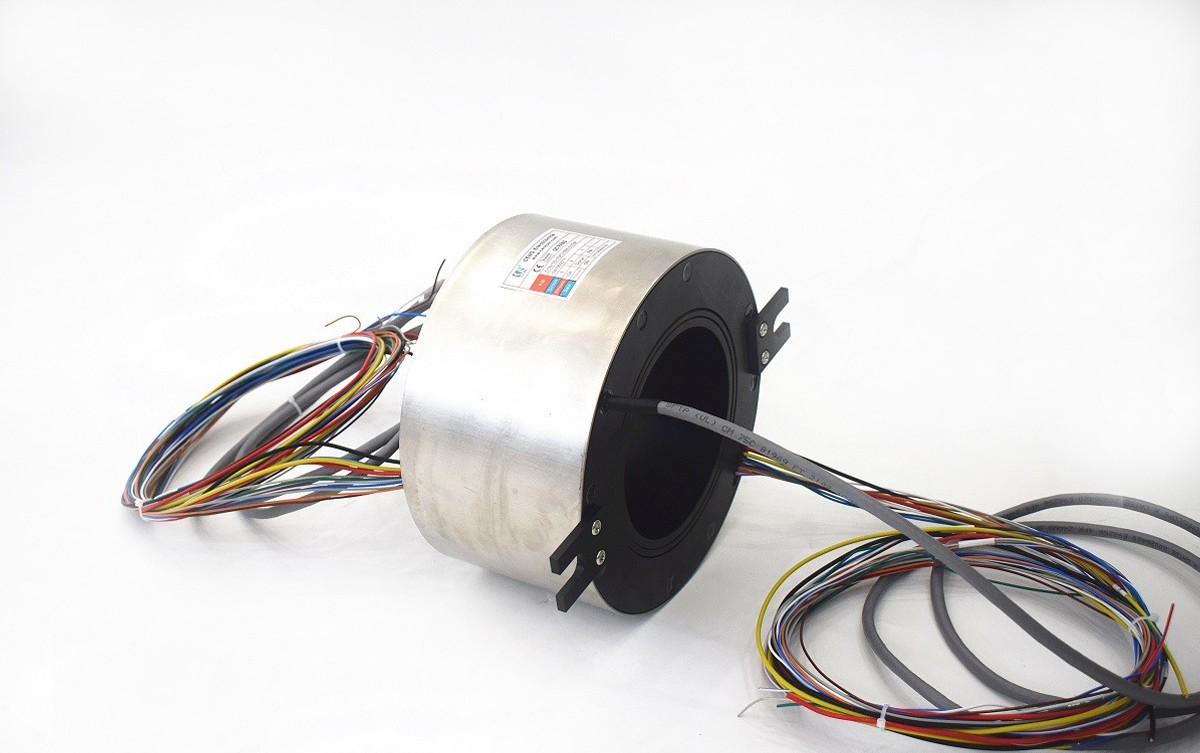

Large size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.
Charateristic
Customized product size
High level protection grade could be used in outdoor
With maintenance window for easy maintenance
Integrated different type of current and signal
Application
Sewage treatment
Material transfer equipment
Industry equipment
Seaport machine
Ship offshore equipment
| Model | ID(mm) | OD(mm) | CKT No. | Current/Signal | Voltage | Working speed | Spec |
| ECN-C-800-04P-02S | 800 | 1170 | 6 | 4*24A(380VAC), 2*signal (24VDC) | 380VAC/ 24VDC | 1-2 rpm |  |
| ECN-C-700-06P | 700 | 1070 | 6 | 6circuits * 24A | 380VAC | 1-2 rpm | |
| ECN-C-550-06P3 | 500 | 970 | 6 | 6circuits*15A | 380VAC | 1-2 rpm | |
| ECN435-04P-12S | 435 | 520 | 16 | 3*15A ,1*35A , 6 group*K thermocouple signal | 0-440VAC/VDC | 0~60rpm | |
| ECN-C-300-06P-08S | 300 | 430 | 14 | 8*signal,6*15A | 0-220VAC/VDC | 2~8 rpm | |
| ECN300-24P | 300 | 476 | 24 | 4*Thermocouple signal,12*30A | 380VAC | 0-200 rpm | |
| ECN-C-280-06P-08S | 280 | 436 | 14 | 8circuits*signal; 6circuits*40A | 240VAC | 2~8 rpm | |
| ECN220-06P-17S-02EM | 220 | 350 | 25 | 6*30A,4*RS232 signal,2*PAL signal, 2*100M Ethernet | 0~220VAC/VDC | 0-30 rpm | |
| ECN210-06P1 | 210 | 275 | 6 | 6*5A | 0-380VDC | 0-60 rpm | |
| ECN203-01P | 203 | 410 | 1 | 1*20A | 0-1000VAC/VDC | 0-10 rpm | |
| ECN200-04P-12P2 | 200 | 380 | 16 | 4*63A,12*10A | 0~380VAC/VDC | 0-100 rpm | |
| ECN190-10P2-46P | 190 | 379 | 56 | 4*30A,10*10A,20*2A,22*1A | 500VAC/400VAC/250VDC/150VDC/48 VDC | 0-500 rpm | |
| ECN180-04S | 180 | 306 | 4 | 4*K type thermocouple signal | 380VAC | 0-50 rpm | |
| ECN180-04P-04P2-04P1-26S | 180 | 310 | 38 | 4*20A,4*10A,4*5A, 1*PE,10* limit signal ,2 group*encoder signal | 0-220VAC/VDC | 0-30 rpm | |
| ECN130-19P-06S | 130 | 220 | 25 | 6*2A,2*PE,3*8A,4*2 2*PT100 signal,4*0.5AA | 0-400 VAC/VDC | 0-50 rpm | |
| ECN120-05P2-08S | 120 | 207 | 13 | 5*10A, 8* signal | 380VAC | 0~10rpm | |
| ECN120-04P1 | 120 | 216 | 4 | 4*5A | 380VAC | 0-250 rpm | |
| ECN120-03P3-09S-01EM | 120 | 207 | 13 | 3*15A,9*signal,1*100M Etherne | 0-380VAC/VDC | 0-20 rpm | |
| ECN120-03P2-12S | 120 | 207 | 15 | 3*10A,12*signal | 0-380 VAC | 0-10 rpm | |
| ECN115-06P3-19S-01EM | 115 | 185 | 26 | 6*15A,17*5A,2*6A,1*100M Ethernet | 0-220VAC/VDC | 0-60 rpm | |
| ECN115-03P3-15S | 115 | 185 | 18 | 3*15A,13*5A,2*6A | 0~220VAC/VDC | 0-60 rpm | |
| ECN112-02P | 112 | 192 | 2 | 2*3A | 380VAC | 100 rpm | |
| ECN110-08P-12S | 110 | 204 | 20 | 6*1A，2*5A ; 12*Raster encoder signal | 380VAC | 0~10rpm | |
| ECN108-06P2-08P1 | 108 | 160 | 14 | 6*10A,8*5A | 220VAC/24VDC | 0-60 rpm | |
| ECN101-04P-06S | 101 | 203 | 10 | 4*50A, 6* signal | 0-500VAC/VDC | 0-30 rpm | |
| ECN100-06P2-08P1 | 100 | 176 | 14 | 6*15A ,8*5A | 220VAC/24VDC | 0~60rpm | |
