End-of-Arm Tooling Application for Industrial Robot Arms

End-effectors on multi-degree-of-freedom robots commonly use pneumatic grippers for workpiece handling. During 360° reciprocating rotation of the robot arm, traditional separate connectors are prone to air tube kinking and signal wire tension breakage. The QCN24M5 integrates air and electrical functions in a single device, with 24 channels capable of simultaneously delivering drive power, photoelectric sensor signals, and limit switch signals. The 5A per-channel current rating meets the power requirements of small grippers. Its integrated sealed aluminum housing resists workshop dust, while gold-alloy contacts ensure uninterrupted signal transmission under high-speed reciprocating rotation, simplifying the end-of-arm structure and reducing assembly parts by over 30%.

Fully Automatic Packaging Capping Equipment Application

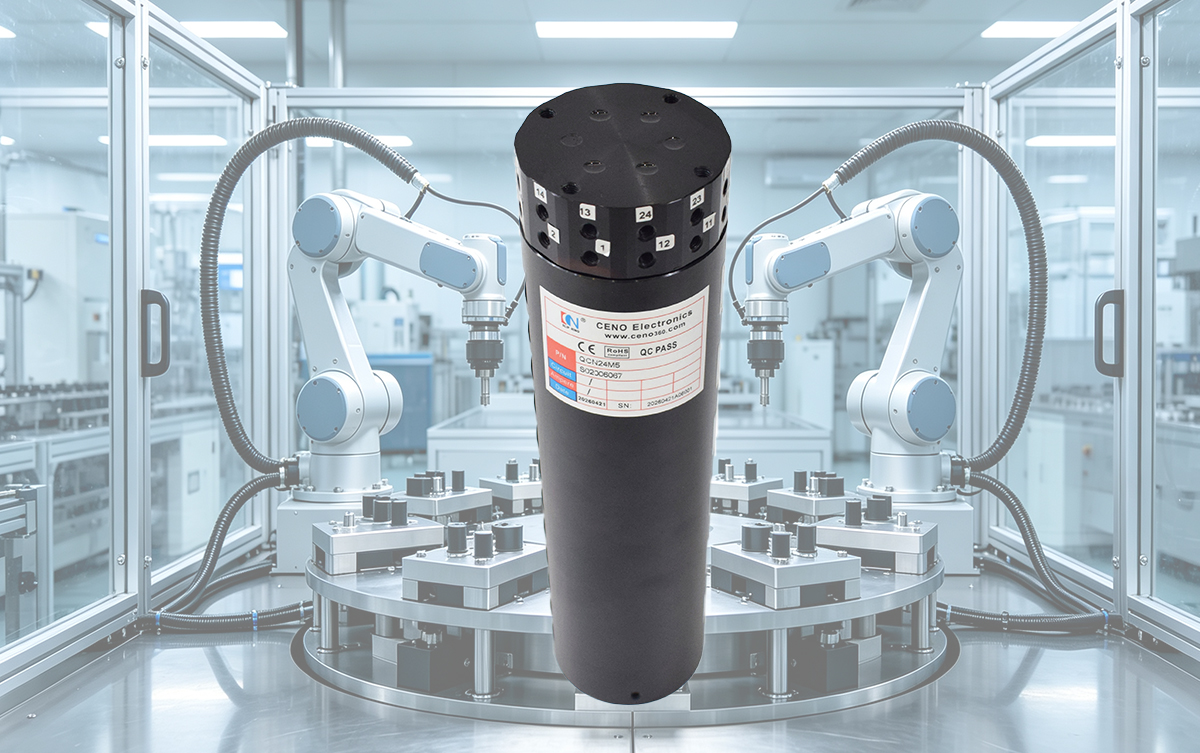

Rotary capping stations in the daily chemical and food industries require continuous unlimited rotation while simultaneously driving pneumatic pressing cylinders and position detection sensors. Separate slip ring + pneumatic union configurations are prone to line interference, and after prolonged high-speed rotation, air leakage and signal loss can lead to machine stoppages. With the QCN24M5 air-electric integrated slip ring, the top-mounted numbered standard ports allow assembly personnel to quickly distinguish signal and air interfaces. The unit is CE and RoHS certified, making it suitable for export-oriented packaging equipment, and delivers stable operation for tens of thousands of consecutive hours, significantly reducing production line downtime for maintenance.

Precision Rotary Inspection Fixture Application

Parts vision inspection and dimensional flaw-detection turntables require 360° uniform rotation, with pneumatic positioning fixtures working synchronously with high-definition cameras and laser sensors. Multiple weak detection signals demand extremely low contact resistance, and ordinary slip rings are prone to signal noise interference. The QCN24M5 features internal precious-metal sliding contacts with minimal contact resistance fluctuation, and its 24 independent channels isolate high- and low-voltage circuits to prevent mutual interference between the air supply and electrical paths, ensuring precise and stable inspection data.

Small Medical Rotating Device Application

Minimally invasive surgical rotating tooling and rehabilitation therapy rotating equipment impose stringent requirements on device size and environmental compliance. This integrated slip ring features a compact design that replaces two separate rotating components, reducing overall machine volume. Its RoHS-compliant, lead-free environmentally friendly materials meet medical equipment manufacturing standards, and it maintains stable air-electric transmission even under low-temperature conditions, making it well-suited for the lightweight design requirements of small medical rotating devices.
