Industry-Specific Applications

• Security Surveillance PTZ Systems

Heavy-duty high-speed PTZ cameras used in airports, seaports, and border control require 24/7 pan-tilt-zoom operations and wireless video transmission. Standard coaxial cables are prone to core twisting and breakage under continuous rotation, leading to video lag and signal dropouts. This RF rotary joint, secured via flange-mount bolt holes, allows one end to rotate with the PTZ unit while the other remains fixed to the station's cabling. It maintains a consistent 50Ω impedance match, ensuring minimal signal attenuation and stable VSWR for high-definition wireless video links, supporting round-the-clock outdoor surveillance operations.

• Radar Scanning Systems

Weather radar and surveillance radar antennas continuously rotate to transmit and receive microwave signals, demanding exceptional electromagnetic shielding. The integrated stainless steel housing of this product forms a closed EMI shielding layer that blocks external interference. Precision internal bearings ensure smooth rotation with extremely low microwave signal loss. The flange mounting structure offers excellent vibration resistance, making it well-suited for harsh outdoor radar environments, including extreme temperatures, high humidity, and rainy conditions.

• Industrial Inspection Rotary Tables

Automated RF testing turntables and component inspection rotary fixtures require uninterrupted RF signal transmission during rotation. The RCN01-18HZ's single-channel design delivers pure, crosstalk-free signals, while its precise flange positioning enables rapid integration into automated production lines. Its RoHS compliance meets environmental requirements for industrial projects in European and American markets, and it is widely used in automotive component RF inspection, electronic component microwave performance testing, and other automated manufacturing scenarios.

• Communication Antenna Rotating Platforms

For mobile communication rotating base station antennas and field emergency communication antenna platforms, this rotary joint allows multi-angle antenna adjustment while maintaining continuous RF signal transmission—eliminating the need to stop and reorganize cable layouts. This significantly improves deployment and debugging efficiency at field communication sites.

Key Application Advantages

• Flange-mount design ensures secure, vibration-resistant installation on various rack and fixture systems.

• Standard SMA RF interfaces are compatible with most common RF cables, simplifying spare part procurement.

• Stainless steel housing with dust caps on both ends resists connector oxidation and extends service life in outdoor environments.

• Clear labeling of production batch and date enables full traceability throughout the product lifecycle.

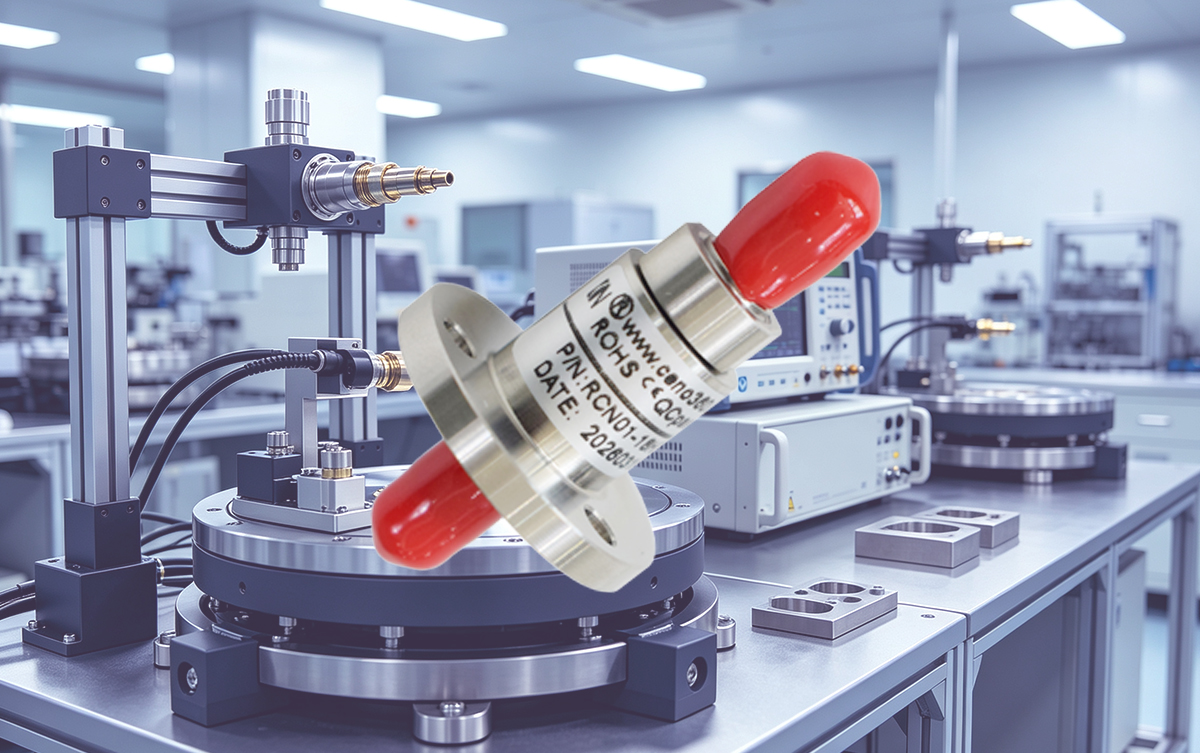

Schematic: Virtual application scene. AI‑generated background, real product photo. Actual conditions subject to project site.
