ACN28-19P1 is CENO capsule slip ring with 19 circuits electric power. CENO capsule series slip ring is small size slip ring and specially designed for data and video signals transmission of small and medium-sized equipment, like speed dome camera, children intelligent toys, stage lights and drones. Features compact structure, high protection grade surface treatment technology, low contact resistance and low electric noise. For more information about how CENO slip ring can fit your application please contact us.
Specification
| ACN28-19P1 | Specification |
|---|---|
Current & Circuits | 19 circuits * 5A |
Rating Voltage | 0 ~ 200 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz |
Isolation resistance | ≥100MΩ@500VDC |
Contact resistance wave | ≤ 35mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP50 |
Operating speed | 0~200rpm |
Outer diameter | Ø28mm |
Contact material | Precious Metal |
Housing material | Aluminium Alloy |
Lead wire size & length | As customized |

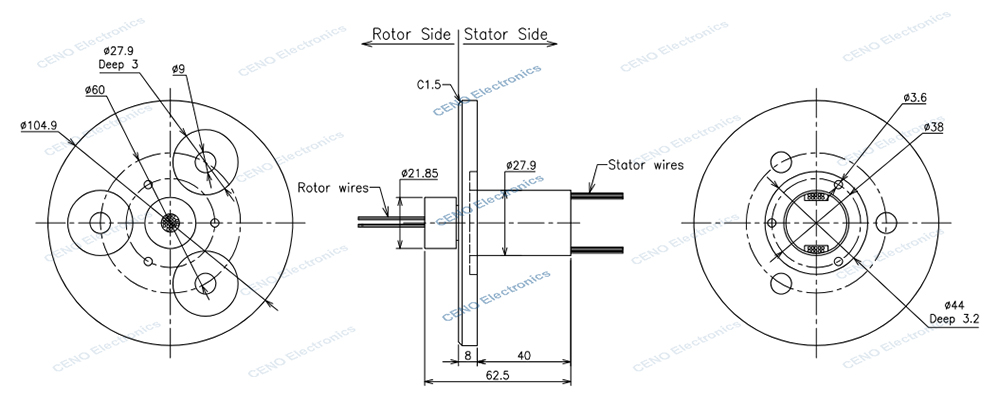

Outline drawing
