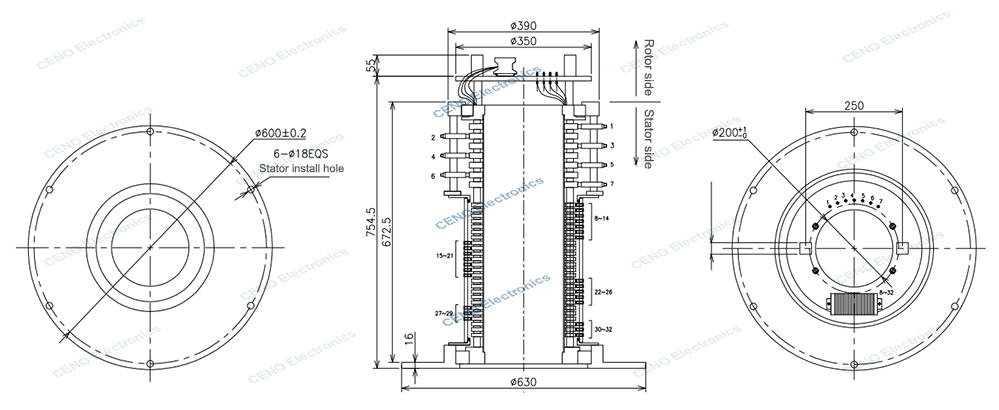

BHCN-C-200-0763-25S Carbon Brush Slip Ring

BHCN-C-200-0763-25S is CENO carbon brush slip ring with 65 circuits electric power & 25 circuits signals for kinds of industrial equipment. CENO carbon brush slip ring represent the union of manufacturing processes and technologies that enable CENO to offer large, high volume slip rings with advanced feature that are cost effective. Capability of adding integral encoder, multiplexer, fiber optic rotary joint and non-contacting data link. For more information please contact us.

Product Details

Specification

BHCN-C-200-0763-25S	Specification
Current & Circuits	6 * 63A; 1 * PE; 25*Signal
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@100VDC; ≥100MΩ@100VDC
Contact resistance wave	≤ 10mΩ
Working temperature	-20°C~+60°C
Working humidity	90 %RH
IP protection grade	IP00
Operating speed	0~5rpm
Inner diameter	200mm
Contact material	Copper graphite
Housing material	Aluminium Alloy
Maintenance	On Schedule
