During the operation of large rotary equipment such as shield tunneling machines, port cranes, wind turbine pitch systems, and heavy-duty CNC rotary tables, 360° continuous rotation poses common pain points including cable twisting, breakage, and signal interruption, which directly lead to equipment downtime and production safety hazards. The multi-channel hollow-shaft high-current conductive slip ring is the core rotary conductive component that solves this challenge.

This customized hollow-bore slip ring features an independent-channel design with layered gold-plated copper rings. Multiple conductive ring layers are separated by insulating spacer gaskets, with each electrical channel completely independent. It can simultaneously carry high-power drive current and low-level sensor, communication, and control signals. With multiple circuits integrated into one unit, it eliminates the cumbersome structure of installing multiple small slip rings in series. The product's core adopts a hollow through-shaft structure, allowing equipment drive shafts, hydraulic oil pipes, and pneumatic lines to pass directly through the center bore, perfectly accommodating the coaxial layout requirements of large equipment and greatly simplifying the overall mechanical design.

The conductive contact end is equipped with a dual-row split carbon brush holder assembly, with thickened brass conductive terminals and insulating protective sleeves, ensuring stable contact and low wear. Even under prolonged high-speed rotation, it maintains extremely low contact resistance, preventing overheating and arcing. The split wiring design at both ends distinguishes the rotating and stationary ends: the white insulated terminal block on the left serves as the rotor outlet end, connecting to the equipment's rotating load; the upper and lower carbon brush terminals form the stationary stator end, connecting to the external power supply and control cabinet. The wiring layout is clearly partitioned, facilitating on-site connection, inspection, and fault diagnosis. The aluminum alloy mounting flange, together with dedicated support brackets, offers flexible installation options—vertical or flange-mating fixation—suitable for confined installation spaces in various heavy-duty equipment.

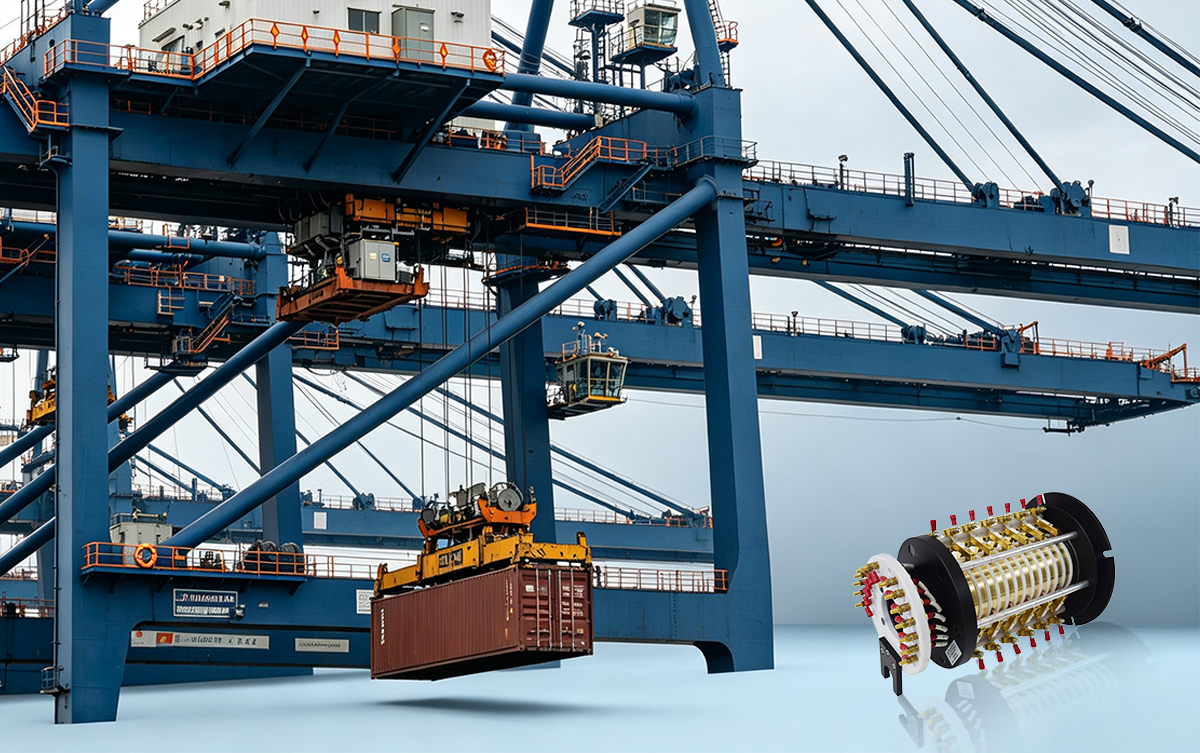

In shield tunneling machines, the slip ring continuously transmits power and signals to the cutterhead drive motors, hydraulic control valves, and sensors, ensuring uninterrupted operation of the boring head during unlimited rotation. In port gantry crane slewing mechanisms, this slip ring enables 360° unrestricted rotation of the boom for cargo handling, eliminating cable entanglement and damage. In large wind turbine pitch systems, the slip ring simultaneously transmits power supply and pitch-angle control signals, adapting to complex outdoor operating conditions.

Compared with traditional split-type conductive solutions, this hollow-bore high-current slip ring offers higher integration and stronger protective insulation performance. Its industrial-grade insulating materials are suitable for both high- and low-voltage AC/DC conditions, significantly reducing equipment failure rates and extending the service life of entire machine cables and conductive components. It is an indispensable core conductive accessory for heavy-duty rotary equipment.
