ECN000-03P4-06P-08S-04EM Ethernet signal slip ring

ECN000-03P4-06P-08S-04EM is CENO new customized Ethernet signal slip ring with circuits electric power and Ethernet / RS422 signals for industry automation system. Industry Ethernet signal is an Ethernet technology used in the field of industrial control system. It’s technically compatible with commercial Ethernet, but the actual products and applications are completely different, Industrial Ethernet features high quality material, strength and timeliness should meet the needs of industrial sites.

Product Details

Specification

ECN000-03P4-06P-08S-04EMSpecification

Current & Circuits

3 circuits *30A; 2 circuits * 10A; 4 circuits * 5A; 1 * RS232; 1 * RS422; 4 group * 100M Ethernet signal

Rating Voltage

0 ~ 220 VAC/VDC

Dielectric strength

≥1000VAC@50Hz; ≥500VAC@50Hz

Isolation resistance

≥500MΩ@500VDC; ≥100MΩ@100VDC

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP51

Operating speed

0~300rpm

Outer diameter

Ø86mm

Contact material

Precious Metal / gold to gold

Housing material

Aluminum alloy

Lead wire size

As customized

Lead wire length

As customized

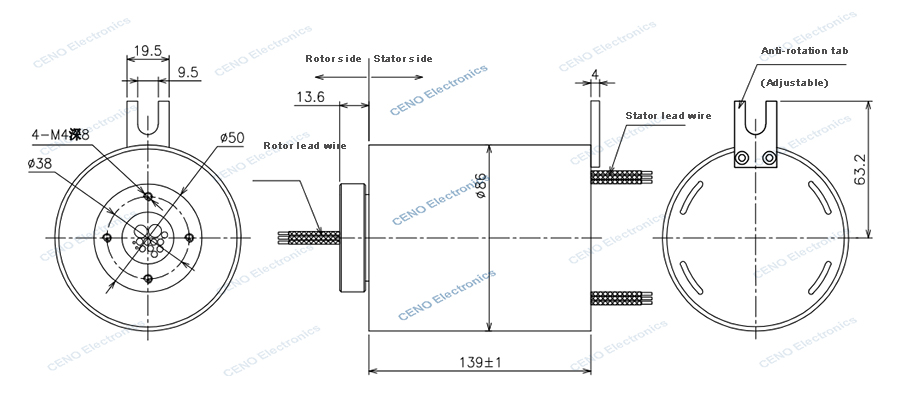

Outline drawing

ECN000-03P4-06P-08S-04EM drawing rev
