ECN038-04P-0803

Slip ring comes to transferring electrical signals, energy, gases, or liquid media from a static to a rotating component, CENO electrical slip rings offer the optimum solution to clients . reliable signal and data transmission with high transfer rates, long lifespan, and easy of handling are the obvious essential requirements that CENO slip rings meet.

Product Details

ECN038-04P-0803	Specification
Current	410A,83A
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥500V@50Hz
Insulation resistance	1000MΩ@500VDC
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	40~+60℃
Through bore size	38.1mm
IP protection grade	IP54

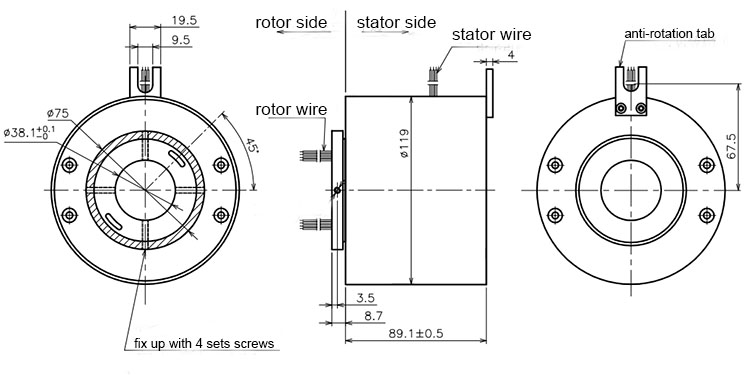

Outline drawing
