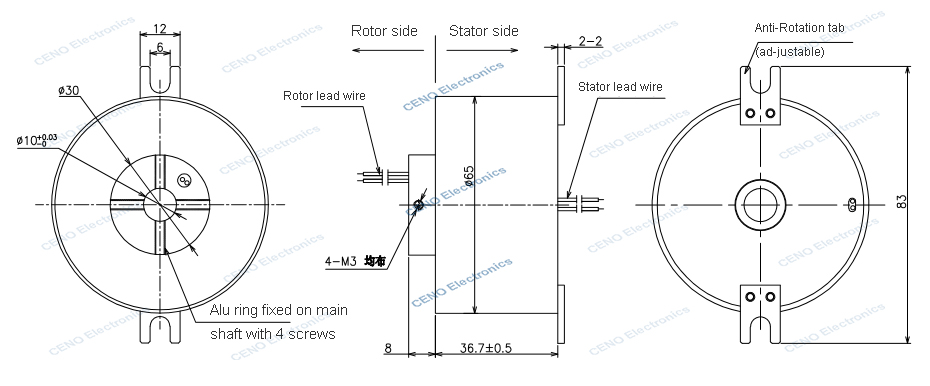

ECN010-02S-GS High Speed Slip Ring

ECN010-02S-GS is CENO high speed slip ring with rotation speed up to 2000rpm and 1 circuit T-type Themocouple. CENO high-speed thermocouple slip ring is a crucial device specifically designed for synchronously transmitting weak thermocouple signals and power between rotating and stationary components. Its core objective is to solve the problem of temperature monitoring on high-speed rotating equipment. For more information please contact us.

Product Details

Specification

ECN010-02S-GS	Specification
Current & Circuits	1 group * T-type Thermocouple
Rating Voltage	0 ~ 24 VAC/VDC
Dielectric strength	≥100VAC@50Hz
Isolation resistance	≥50MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~2000rpm
Inner diameter	Ø10mm
Outer diameter	Ø65mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
