ECN000-28P-66S Low Temperature Slip Ring

ECN000-28P-66S is CENO low temperature slip ring with multi-channel electric power and signal. Low temperature slip rings mainly depend on the selection of materials, structural design and manufacturing process. Compare with ordinary slip rings are not designed to take into account the severe challenges brought by low temperatures, while low temperature slip rings are specially designed to deal with these challenges. For more information please contact us.

Product Details

Specification
ECN000-28P-66SSpecification

Current & Circuits

2 * 10A; 2 * 30A; 8 * 5A; 61 * Signal; 5 * Signal (spare)

Rating Voltage

0 ~ 28 VAC/VDC

Dielectric strength

≥500VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Contact resistance wave

≤ 10mΩ

Working temperature

-40°C~+55°C; -50°C~+65°C

Working humidity

93%RH

IP protection grade

IP51

Operating speed

0~30rpm

Outer diameter

Ø65mm

Contact material

Precious metal

Housing material

Aluminium Alloy

Lead wire length

As customized

Rotation way

Flange installation

Rotary torque

≤1.0N*m

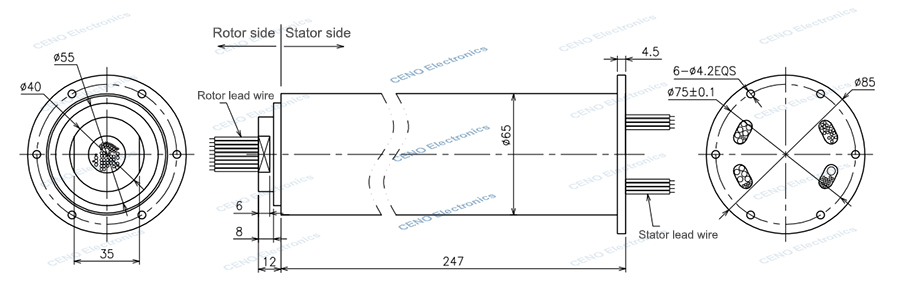

Outline drawing

ECN000-28P-66S drawing
