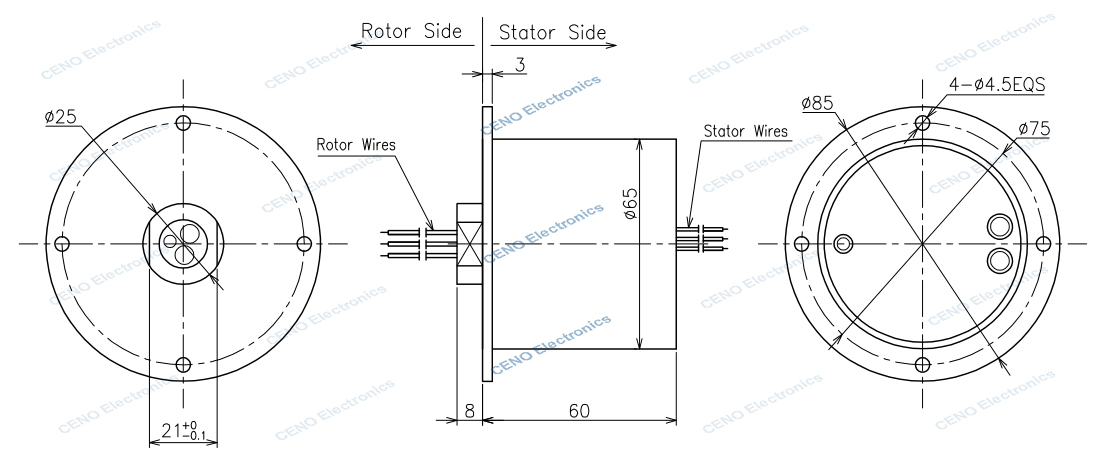

ECN000-0250-04S-B CANBUS Slip Ring

ECN000-0250-04S-B is CENO CANBUS slip ring with circuits electric power and CANBUS signal for automobiles. CAN Bus is a serial communication protocol bus used for real-time applications and is one of the most widely used Profi-bus in the world, CENO have produced many kinds of signal slip rings, it can be integrate USB, Ethernet, Thermocouple, encoder, FORJs or RF as customer different requirements. For more information please contact us.

Product Details

Specification

ECN000-0250-04S-B	Specification
Current & Circuits	2 circuits * 50A; 1 * CANBUS
Rating Voltage	0 ~ 240 VAC/VDC
Dielectric strength	≥1000VAC@50Hz;≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Outer diameter	Ø65mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size	As customized
