WCN02U-02 is CENO wave guide Rotary Joint with 2 channels CPRG 187G. A wave guide is a structural element used to guide the transmission of high-frequency electromagnetic waves, such as microwaves or millimeter waves, usually a hollow metal tube or dielectric structure. Its working principle is based on the reflection and propagation characteristics of electromagnetic waves within a closed or open boundary. It can efficiently transmit electromagnetic energy in a specific frequency band while reducing transmission loss and radiation leakage
Specification
Channel designation | Channel 1 | Channel 2 |
Interface type / material / surface finish | CPRG 187G / aluminium alloy / chromatized | CPRG 187G / aluminium alloy / chromatized |
Frequency range | 4.4-4.5GHz / 4.8-4.9GHz | 4.4-4.5GHz / 4.8-4.9GHz |
Peak power capability | 250KW /min | 250KW /min |
Average power capability | 1000KW /min | 1000KW /min |
VSWR max | 1.25 | 1.25 |
VSWR variation over rotation, max | 0.1 | 0.1 |
Insertion loss, max | 0.4dB | 0.5dB |
Insertion loss variation over rotation, max | 0.1dB | 0.1dB |
Isolation between | 60dB | |
Operating temperature | -20℃~55℃ | |
Rotating speed | 10RPM max, Operating 6RPM |

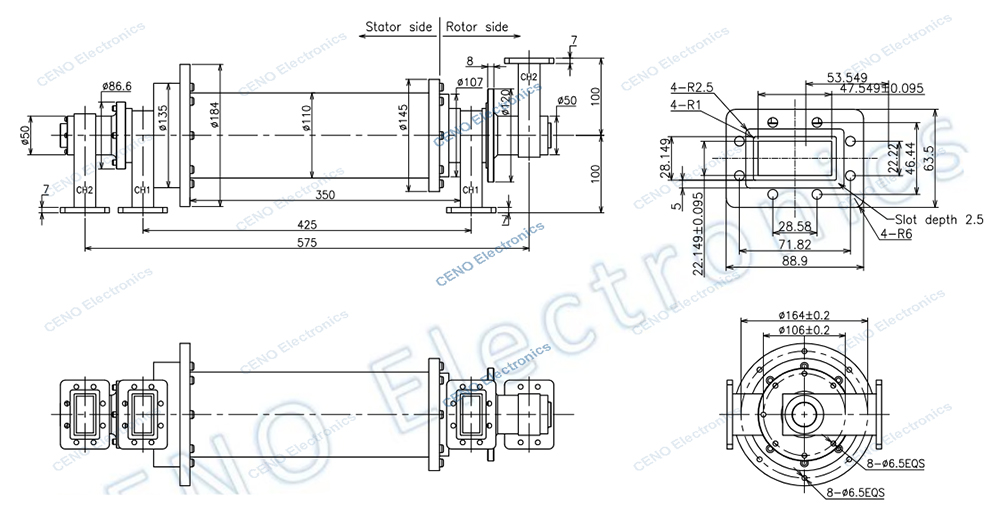

Outline drawing
