RCN0204E RF Rotary Joint

RCN0204E is CENO 2 channels RF rotary joint with connector type SMA-K(50Ω). Which is specifically designed for transmitting radio frequency signals. Its core feature is two independent internal RF signal transmission channels, specifically designed for high-frequency RF signals. This fundamentally differs from conventional electrical slip rings, which transmit power or low-frequency signals. For more information about how CENO RF rotary joint can fit your application please contact us.

Product Details

Specification

RCN0204ESpecification

Channels

1

2

Connector type

SMA - K (50Ω)

SMA - K (50Ω)

Frequency range

DC-4.5GHz

DC-4.5GHz

Peak power

1KW

1KW

Average power

50w@1GHz

50w@1GHz

Standing wave ratio (max)

1.25

1.6

Standing wave ratio wave (max)

0.1

0.2

Insert loss (max)

0.3dB

0.5dB

Insert loss wave (max)

0.1dB

0.2dB

Isolation

60dB

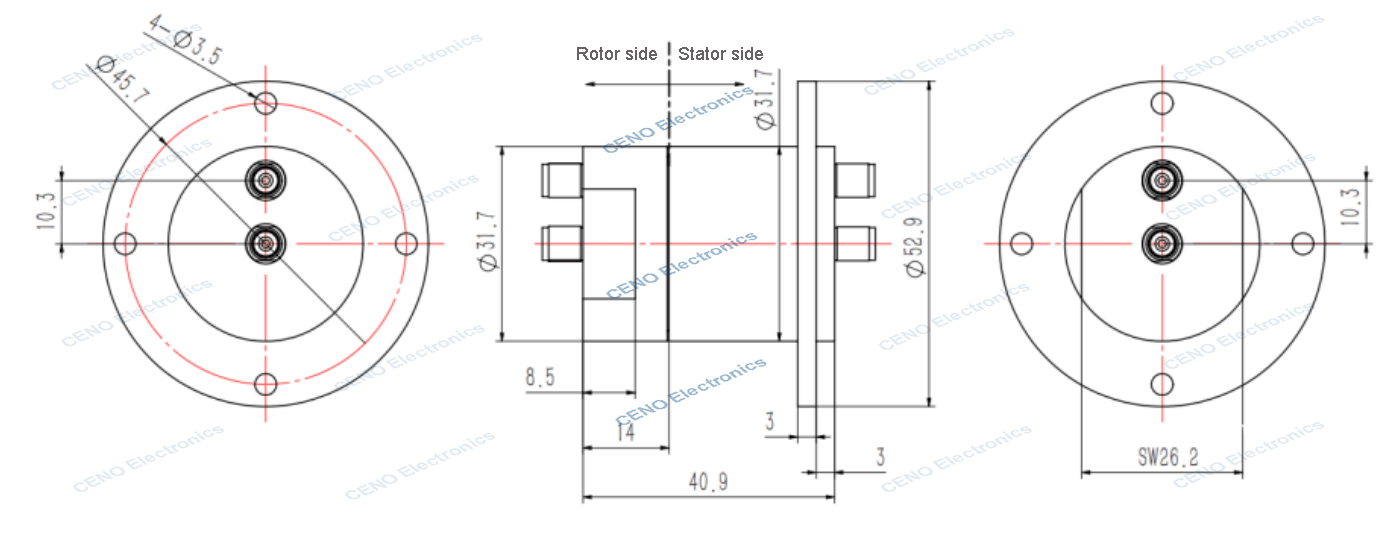

Outline drawing

RCN0204E drawing
