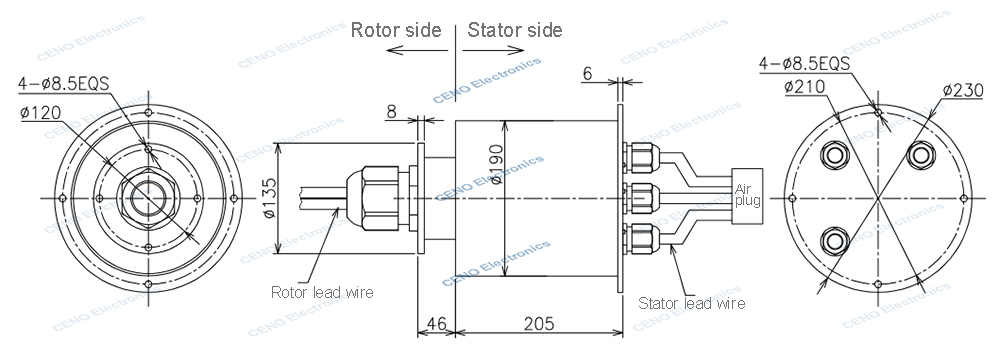

BHCN-C-03200-IP66 High Current Slip Ring

BHCN-C-03200-IP66 is CENO high current slip ring with 200A current and protection grade IP66 for equipment suitable for temperature from -40°C~+60°C. High current slip ring refer to a slip ring can bear and transfer current over tens amperes or higher commonly. Often equipped in industry equipment, such as electric motors, welding machines, and large lighting systems where require hundreds to thousands of amperes of current to drive them. For more information please contact us.

Product Details

Specification

BHCN-C-03200-IP66	Specification
Current & Circuits	3 * 200A
Rating Voltage	0 ~ 2000 VAC/VDC
Dielectric strength	≥5000VAC@50Hz
Isolation resistance	≥1000MΩ@1000VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+60°C
Working humidity	60 %RH
IP protection grade	IP66
Operating speed	0~10rpm
Outer diameter	Ø190mm
Contact material	Precious Metal / Gold to gold
Housing material	Aluminium Alloy + Stainless steel
Rotation way	Flange installation
Lead wire length	As customized
