ECN000-05P3-02P1-02EG is CENO high protection slip ring with electric power and Ethernet signals. Ethernet technology is currently the most commonly used network technology, which provides a communication bandwidth of 1 GBPS for the Internet and communication systems. It has the simplicity of Ethernet and the economy of a similar rate communication system. CENO provide kinds of combined Ethernet signal slip rings. More special applications please contact us.
Specification
| ECN000-05P3-02P1-02EG | Specification |
|---|---|
Current & Circuits | 5 * 16A; 2 * 6A; 1*PE; 2 * 1000M Ethernet |
Rating Voltage | 0 ~ 415 VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz; ≥300VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC; ≥200MΩ@300VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP65 |
Operating speed | 0~20rpm |
Outer diameter | Ø99mm |
Contact material | Precious Metal / Gold to gold |
Housing material | Aluminium Alloy |
Rotary Torque | ≤ 3N*m |
Lead wire length | As customized |

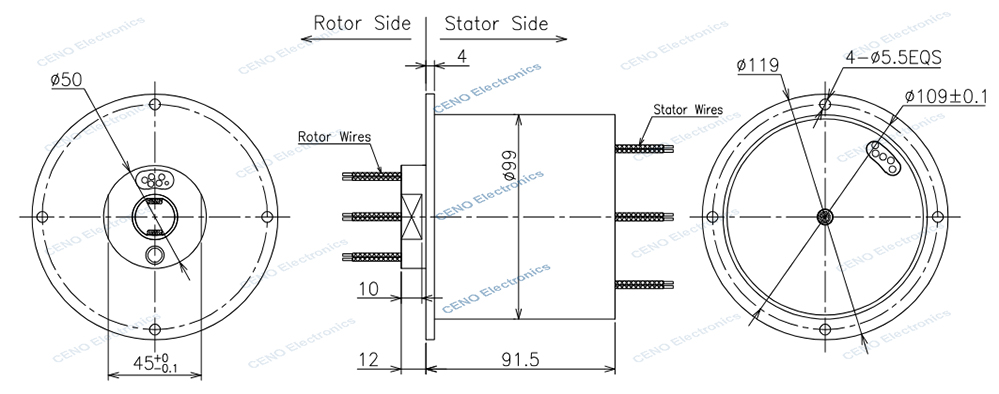

Outline drawing
