ECN-EX-08P1-IP66 Anti-explosion Slip Ring

ECN-EX-08P1-IP66 is CENO anti-explosion slip ring with protection grade IP66 for the low temperature environment. Anti-explosion slip ring is one type of CENO slip ring series, it is a high safe and reliable conductive slip ring that can work in explosive environments. It is generally used in petroleum, chemical / explosive environments. For more information about how CENO slip ring can equip in your machinery, please contact us.

Product Details

Specification

ECN-EX-08P1-IP66

Specification

Current & Circuits

8 circuits * 4A

Rating Voltage

0 ~ 1000 VAC/VDC

Dielectric strength

≥2500VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Working temperature

-40°C~+60°C

Working humidity

60 %RH

IP protection grade

IP66

Electrical Noise

Max 15mΩ (50rpm)

Operating speed

0~50rpm

Outer diameter

Ø124mm

Contact material

Precious Metal

Housing material

Aluminum alloy

Explosion-proof grade

II2 G Ex d IIC T5 Gb ATEX

Lead wire size

As customized

Lead wire length

As customized

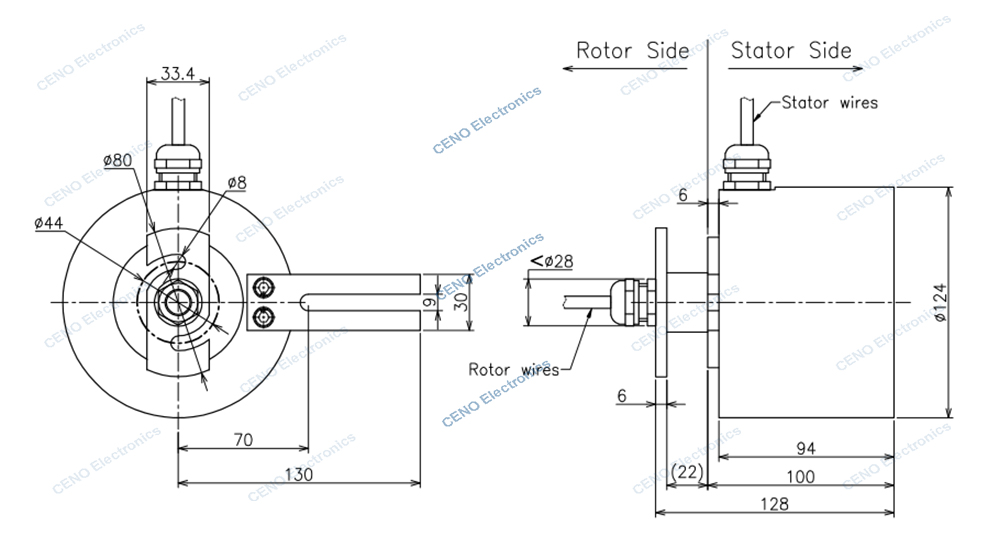

Outline drawing

ECN-EX-08P1-IP66 drawing rev
