ACN22-04P2-IP56 Capsule Slip Ring

ACN22-04P2-IP56 is CENO small capsule slip ring with 4 circuits electric power. CENO capsule series slip ring specially designed for weak electric power, signal and data transmission of small and medium-size equipment, for example used in the dome camera, children intelligent toys, stage light or drones. It features small and compact structure, smooth working and low electrical noise. Most parameters can be customized. For more information please contact us.

Product Details

Specification

ACN22-04P2-IP56	Specification
Current & Circuits	4 circuits * 10A
Rating Voltage	0 ~ 240VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance	≤10mΩ (50rpm)
Working temperature	-20°C~+80°C
Working humidity	90 %RH
IP protection grade	IP56
Operating speed	0~300rpm
Contact material	Precious metal
Outlet lead wire	Engineering plastic

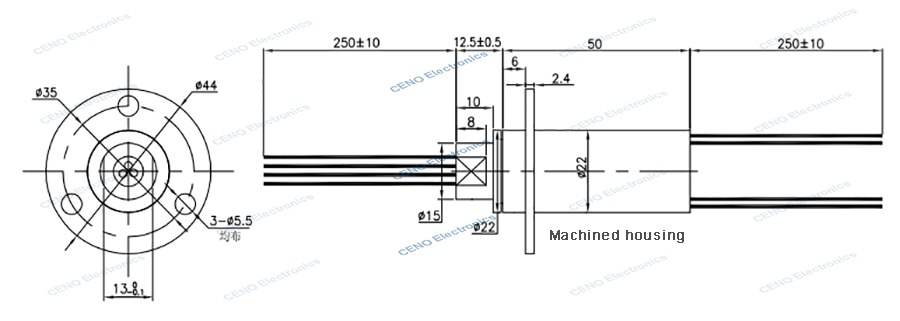

Outline drowing
