ACN022A-02EG Gigabit Ethernet Capsule Slip Ring

ACN022A-02EG is CENO capsule slip ring with 2 circuits Ethernet signal, Capsule slip rings are widely used in equipment requiring 360-degree continuous rotation while transmitting both power and signals. They are the lifeline of modern precision rotating equipment. Their versatility and reliability make them an indispensable component in high-end industrial and technological equipment. For more information please contact us

Product Details

Specification

ACN022A-02EGSpecification

Current & Circuits

2 circuits * 1000M Ethernet signal

Dielectric strength

≥500VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Contact resistance wave

≤ 10mΩ

Working temperature

-20°C~+80°C

IP protection grade

IP65

Operating speed

0~250rpm

Outer diameter

Ø22mm

Contact material

Precious metal

Housing material

Aluminium Alloy

Lead wire length

As customized

Rotation way

Flange installation

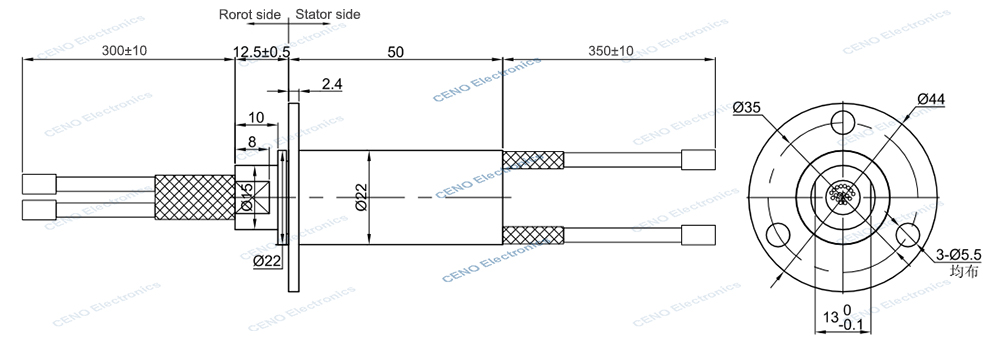

Outline drawing

ACN022A-02EG drawing rev
