BHCN-C-04400-0560-42S is CENO carbon brush slip ring with electric power named central collector and also called High current slip ring, large power slip ring, carbon brush slip ring, marine slip ring, can transmit high current 100A or higher, often apply to the marine machinery, engineering machine, Harbour machinery, such as marine crane, offshore platform crane, cable drum, Thruster or boat’s propeller and drilling plat form etc. For more information please contact us
Specification
| BHCN-C-04400-0560-42S | Specification |
|---|---|
Working temperature | -10°C~+45°C |
Working humidity | 90 %RH |
IP protection grade | IP54 |
Operating speed | 0~5rpm |
Rating Voltage | 0 ~ 400 VAC/VDC |
Current & Circuits | 3 * 400A; 1 * PE; 3 * 60A; 2 * 60A |
Dielectric strength | ≥1500VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Contact resistance wave | ≤ 10mΩ |
Contact material | Copper carbon |
Connect type | Screw connect terminal |
Maintenance | On schedule |
Rating Voltage | 0 ~ 220 VAC/VDC |
Current & Circuits | 6 * 16A; 36 * 10A |
Dielectric strength | ≥1000VAC@50Hz |
Isolation resistance | ≥300MΩ@500VDC |
Connect material | Precious metal |
Connect type | Connect wire box |
Maintenance | Free |
Rotation method | Circuits rotating, brush stable |
Other | Heater and temperature controller |

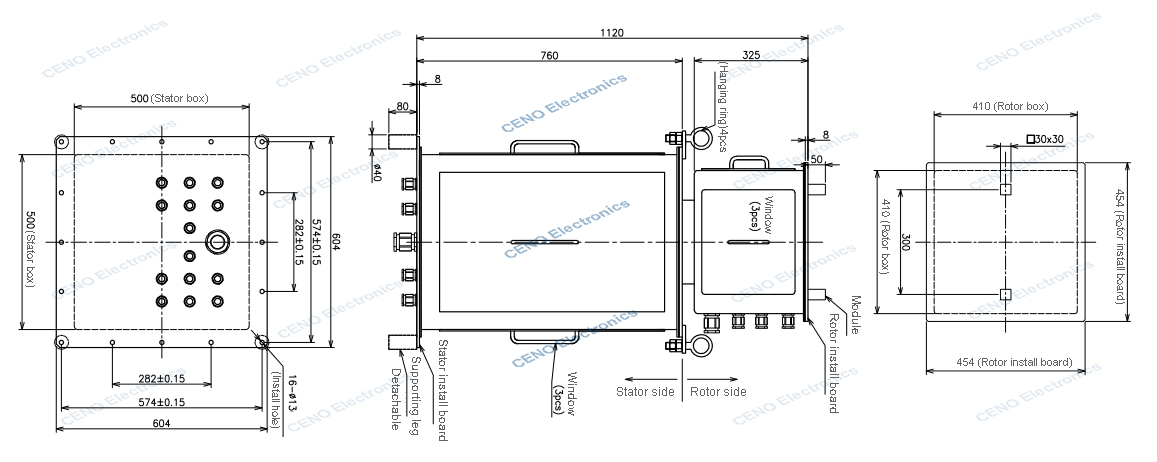

Outline drawing
