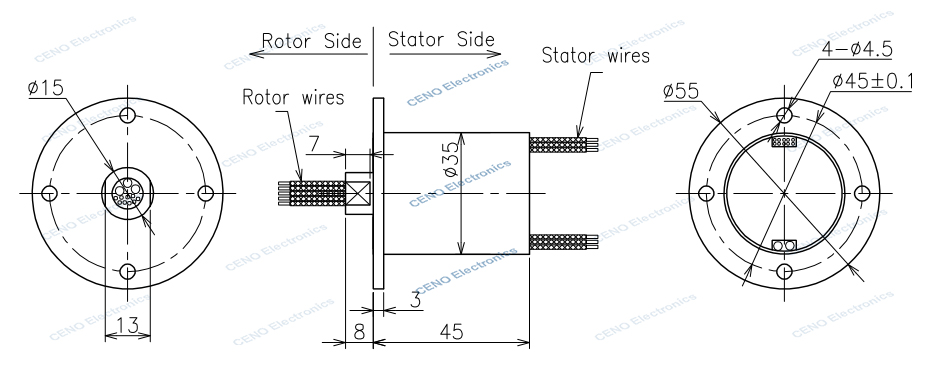

ECN000-02P3-01EG Ethernet Signal Slip Ring

ECN000-02P3-01EG is CENO Ethernet signal slip ring with flange structure for easier installation. Ethernet slip rings adopt local area network transmission technology based on fiber optic communication. They achieve high-speed, stable and reliable data transmission by combine optical fibers and cables, and Ethernet slip ring enable seamless connections between wire and forjs, ensuring the stability and reliability of data transmission. For special application please contact us.

Product Details

Specification

ECN000-02P3-01EG	Specification
Current & Circuits	2 * 13A; 1 *1000M Ethernet
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~10rpm
Outer diameter	Ø35mm
Contact material	Precious Metal / Gold to gold
Housing material	Aluminium Alloy
Rotation way	Flange installation
Lead wire length	As customized
