FCN Series is a family of fiber optic rotary joints manufactured by CENO, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. No contact, long life(single core type has life 100billion rotations). The fiber connector is designed perfectly for transmitting a large capacity of data and signal from stationary to rotating parts.
FCN0203-44S | Specification |
| Fiber type | SM/MM |
| Fiber channel | 2-3 |
Connector type | FC/PC/LC/ST |
Wave length range | 1270-1610nm for SM;850 and 1310nm for MM |
Insertion loss | < 5dB |
Rotation speed,max | 300rpm |
Operation temperature | -20℃～+65℃ |
Estimated life cycle | 100-200 million revolutions |
IP grade | IP65 |
Housing materia | Stainless stee |
| Package style | Pigtails on both ends |

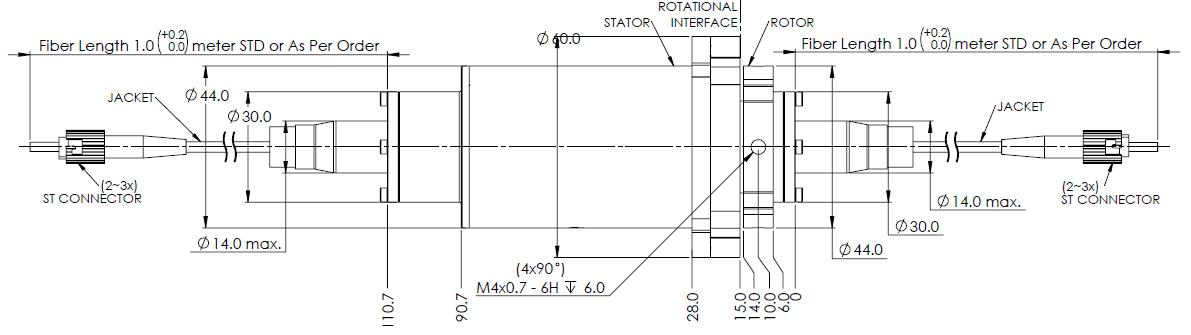

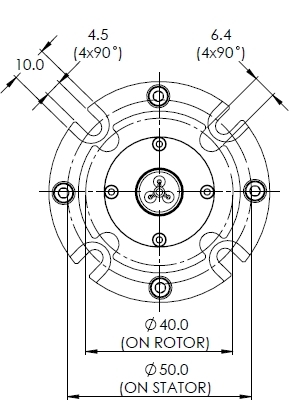

Outline drawing
