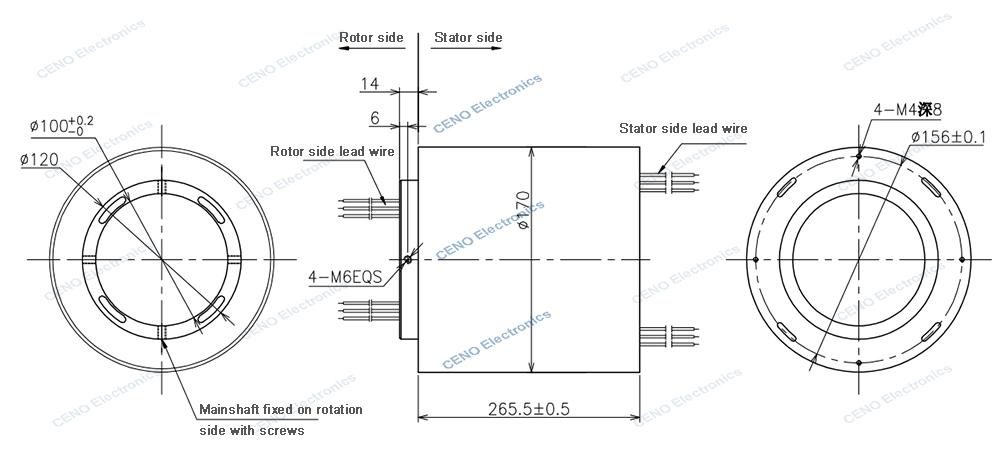

ECN100-16P1-47S-02EG Low Temperature Slip Ring

ECN100-16P1-47S-02EG is CENO Low temperature slip ring with through hole diameter 100mm, high and low temperature slip rings are key precision components to solve the challenges of rotary connection in extreme temperature environments. The core is to ensure reliable power, signal, data and fluid transmission in an ultra-wide temperature range (from deep cold to high temperature) through special materials, structural design, lubrication technology and manufacturing process.

Product Details

Specification

ECN100-16P1-47S-02EG	Specification
Current & Circuits	10 * 5A; 6 3A; 3 RS422 Signal; 8 * 2A; 2 * Net; 2 * Signal
Rating Voltage	0 ~ 48 VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@100VDC
Working temperature	-40°C~+70°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Inner diameter	Ø100mm
Outer diameter	Ø170mm
Contact material	Precious Metal
Housing material	Aluminum alloy
Lead wire size	As customized
Lead wire length	As customized
