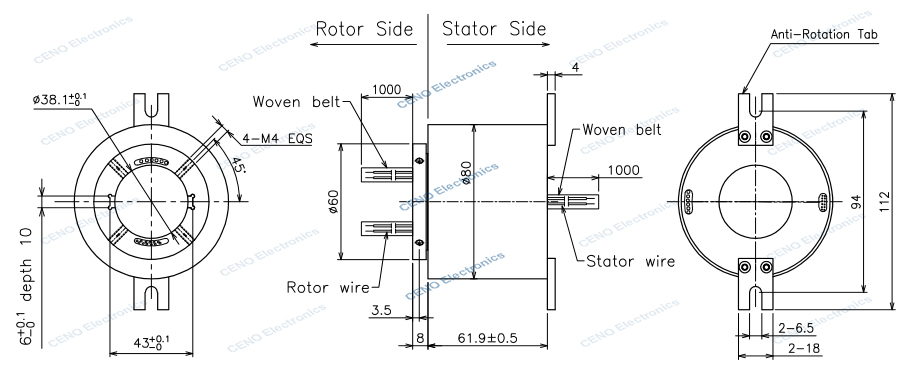

ECN038-02P4-02EM-IP51 Low Temperature Slip Ring

ECN038-02P4-02EM-IP51 is CENO low temperature slip ring with protection grade IP51 and through hole 38mm. Low-temperature slip rings are a special customized version of electrical slip rings. Their core function is to maintain stable electrical power/signal transmission under extreme low-temperature conditions, while also possessing characteristics such as resistance to low-temperature embrittlement, resistance to condensation, and low contact resistance fluctuation. Please contact us get more information.

Product Details

Specification

ECN038-02P4-02EM-IP51	Specification
Current & Circuits	2 circuits * 20A; 2 group * 100M Ethernet
Rating Voltage	0 ~ 240 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-60°C~+70°C
Working humidity	95±4 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Inner diameter	Ø38mm
Outer diameter	Ø80mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
