ECN080-03P4-01EM Ethernet signal slip ring

ECN080-03P4-01EM is CENO Ethernet signal slip ring with circuits electric power and Ethernet signal. CENO has series product line, Ethernet signal slip ring is one of them, we developed products for critical applications in military, space, medical and industrial environments. Any more, a wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application requirement. For more information please contact us.

Product Details

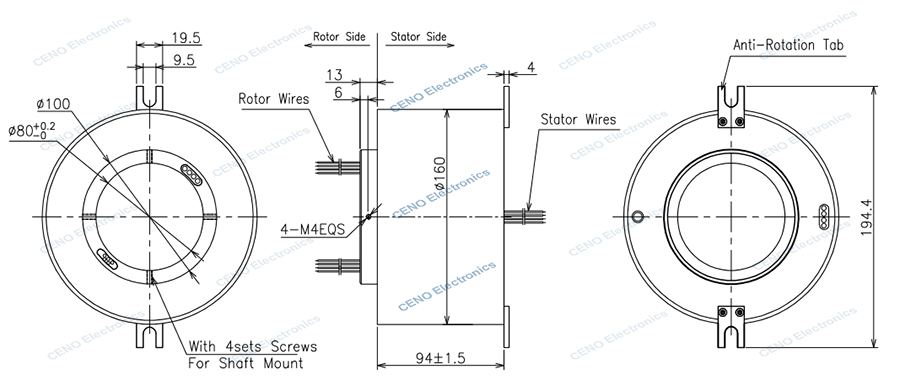

Specification

ECN080-03P4-01EM	Specification
Current & Circuits	2 circuits30A; 1PE; 1*100M Ethernet
Rating Voltage	0 ~ 400 VAC/VDC
Dielectric strength	≥1500VAC@50Hz;≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC;≥100MΩ@300VDC
Electrical noise	Max 30mΩ (50rpm)
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~50rpm
Inner diameter	Ø80mm
Outer diameter	Ø160mm
Contact material	Precious Metal
Housing material	Aluminum alloy
Lead wire size	As customized
Lead wire length	As customized
Installation	Rotor side fixed on main shaft with screws
