ECN050-32P3 is CENO through hole slip ring with 32 circuits electric power for automatic machine. Through hole slip ring commonly used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance, high precision, and multiple continuous rotational movements. Often used in aerospace equipment, radar communication equipment or medical equipment. For more information please contact us.
Specification
ECN050-32P3 | Specification |
|---|---|
Current & Circuits | 32 circuits * 15A |
Rating Voltage | 0 ~ 380 VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~300rpm |
Inner diameter | Ø50mm |
Outer diameter | Ø119mm |
Contact material | Precious Metal |
Housing material | Aluminum alloy |
Lead wire size | As customized |
Lead wire length | As customized |

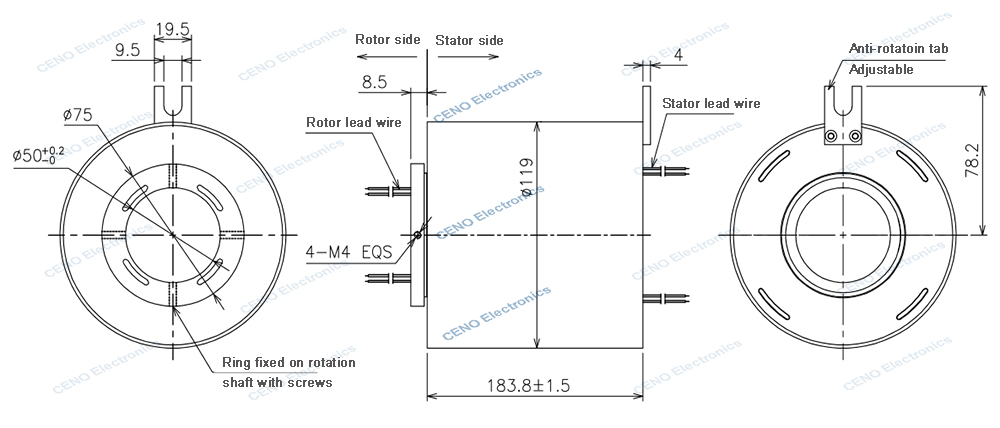

Outline drawing
