PSCN020-02P1-02S-B is CENO pancake slip ring with 4 circuits electric power and signal. Due to it’s unique structure, pancake slip ring offer notable features, like ultra-thin and compact structure, and save axial space, it’s their most prominent advantage. Their low overall height makes them ideal for applications where axial space is limited but radial space requirements are minimal, such as the turntables and within robotic arm and joints. Fore more information about CENO slip ring please contact us.
Specification
PSCN020-02P1-02S-B | Specification |
|---|---|
Current & Circuits | 2 circuits * 5A; 2 circuits * Canbus Signal |
Rating Voltage | 0 ~ 100 VAC/VDC |
Dielectric strength | ≥300VAC@50Hz |
Isolation resistance | ≥100MΩ@100VDC |
Contact resistance wave | ≤ 30mΩ (50rpm) |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP00 |
Operating speed | 0~80rpm |
Inner diameter | Ø20mm |
Contact material | Gold to gold |
Housing material | FR4 |
Rotation way | Flange installation |

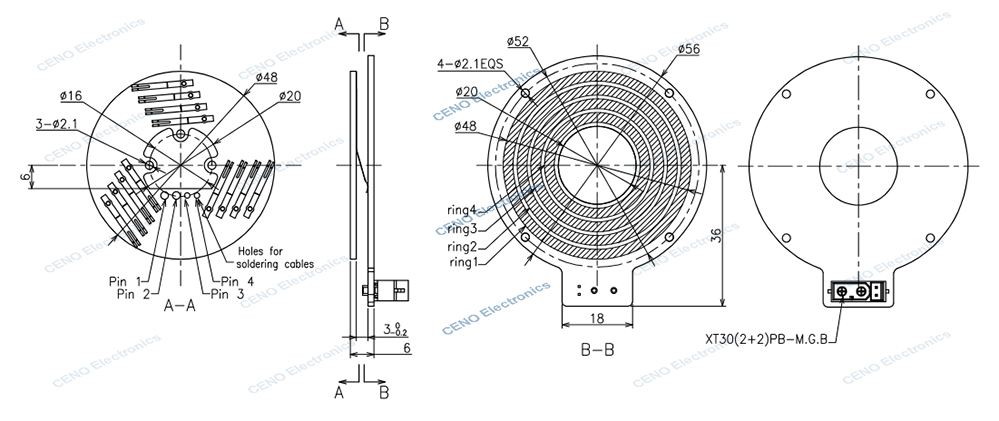

Outline drawing
