ECN000-01S-01F-B-Blacke Integrate Signal and Fiber Optic Rotary Joint

ECN000-01S-01F-B is CENO integrate signal and fiber optic rotary join slip ring with high speed 6000rpm FORJS for the equipment that can work stably in low temperature environment. Integrate power signal and fiber optic rotary joint series of slip rings is a customized non-standard series, designed for specific applications, the product integrates the coaxial signal and fiber optic rotary joint. Structure, signals and channels are optional for different application. For more information please contact us.

Product Details

Specification

ECN000-01S-01F-B-Black	Specification
Current & Circuits	1 circuits * coaxial signal
Rating Voltage	0 ~ 28 VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥50MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+80°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~6000rpm

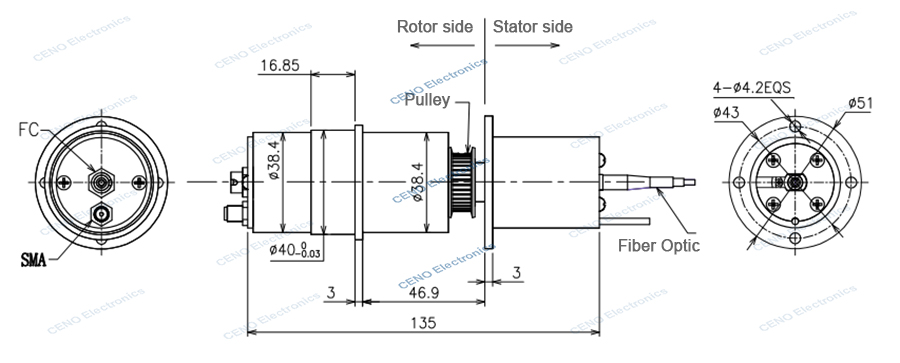

Outer diameter	Ø38.4mm
Contact material	Precious metal
Housing material	Aluminum alloy
Lead wire size	Coaxial FR1.13
Lead wire length	As customized
