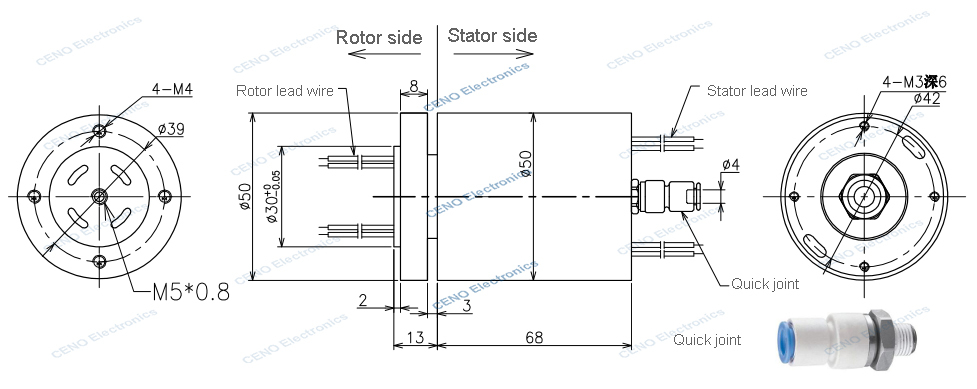

QCN01M5-25S Integrate Pneumatic Hydraulic Slip Ring

QCN01M5-25S is CENO integrate slip ring combine circuits electric power and 1 channel pneumatic rotary union. Power slip ring and pneumatic or hydraulic rotary unions combined slip ring is designed for some special applications where require transferring both electric power & pneumatic / hydraulic medium. CENO takes our technical advantages to developed integrate slip rings for more and more applications. For more information please contact us.

Product Details

Specification

QCN01M5-25S	Specification
Current & Circuits	25 circuits * 2A
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+80°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~30rpm
Outer diameter	Ø50mm
Materials	Precious Metal / Aluminium Alloy
Lead wire size & length	As customized
Rotary Union
Channel	1 channel * Air / Pneumatic
Connect type	M5*0.8 & Tube Ø4
Pressure	-100KPa ~0.5MPa
Rotary Torque	≤1N*m
