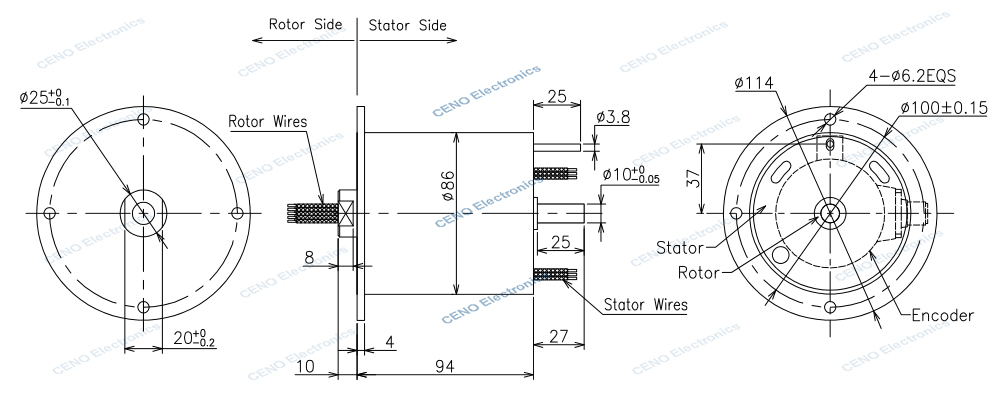

ECN000-04P4-10S CANBUS Signal Slip Ring

ECN000-04P4-10S is CENO CANbus slip ring with electric power and 1 group CANbus signal. CANbus is a widely used in-vehicle network communication protocol in fields such as automotive and industrial automation. It boasts strong anti-interference capabilities and high reliability, and is used to transmit data and commands between multiple electronic control units (ECUs). Simply it solves the problem of stably and reliably transmitting CAN network signals between components that require relative rotation.

Product Details

Specification

ECN000-04P4-10S	Specification
Current & Circuits	5 circuits * 25A; 4 circuits * Signal; 1 group * CAN Bus
Rating Voltage	0 ~ 238 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~300rpm
Outer diameter	Ø86mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
Installation	Flange installation
