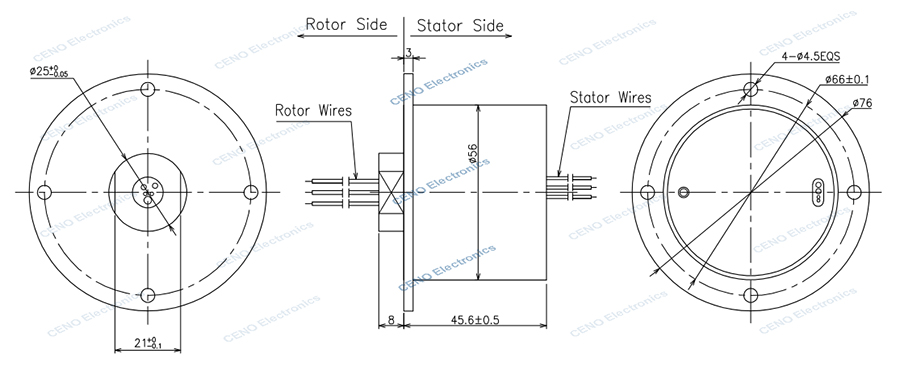

ECN000-02P2-02S-01HD K-type Thermocouple Slip Ring

ECN000-02P2-02S-01HD is CENO K-type thermocouple slip ring combine electric power and HD signal, which uses special materials, structures and shielding technology to ensure high fidelity and low loss of millivolt signals during transmission. The K-type thermocouple slip ring is a precision electrical contact component designed specifically for transmitting thermocouple signals in rotating equipment. Its core task is to solve the problem of continuous and reliable transmission of weak millivolt (mV) temperature difference electrical signals between rotating and stationary parts. More information please contact us.

Product Details

Specification

ECN000-02P2-02S-01HD	Specification
Current & Circuits	2 * 10A; 1 * K-type thermocouple; 1 * HD Signal
Rating Voltage	0 ~ 150 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 20mΩ
Working temperature	-20°C~+60°C
Working humidity	60%RH
IP protection grade	IP51
Operating speed	0~20rpm
Outer diameter	Ø56mm
Contact material	Precious metal
Housing material	Aluminium Alloy
Lead wire length	Rotor: 300mm; Stator side:300mm
Rotary Torque	≤0.3N*m
