SCN-C-038-06P2 is CENO Carbon Brush Slip Ring with 6 circuits electric power and working with high speed up to 6000rpm for industry system. Carbon Brush Slip Ring is one type of electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Slip Ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power or data. For more information please contact us.
Specification
| SCN-C-038-06P2 | Specification |
|---|---|
Current & Circuits | 6 circuits * 10A |
Rating Voltage | 415 VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~6000rpm |
Inner diameter | Ø38mm |
Contact material | Copper graphite |
Lead wire length | As customized |
Installation way | The Rotor installation on the spindle by screws |

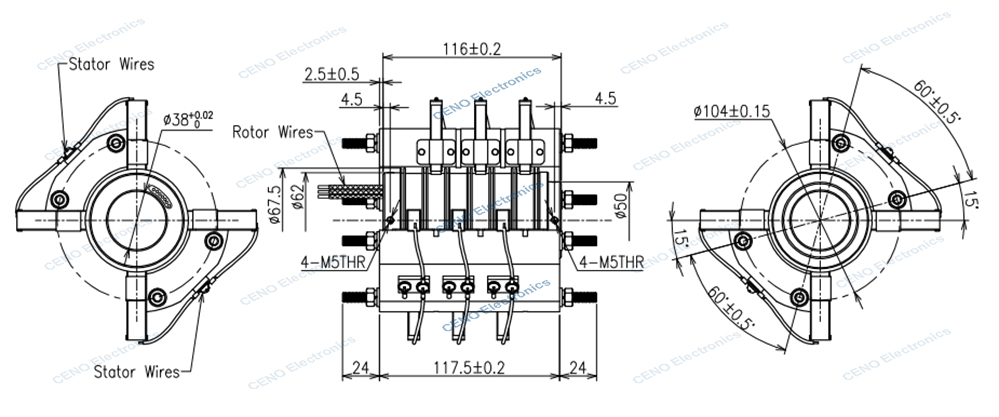

Outline drawing
