ECN025-03P5-14S-01U2-02EG Low Temperature Water-proof Slip Ring

ECN025-03P5-14S-01U2-02EG is CENO low temperature slip ring with water-proof ip65. A low temperature slip ring is a conductive slip ring specially designed to operate in low temperature environments. Its core function is the same as that of an ordinary slip ring: transmitting current, signals (including high-frequency signals), data, and even liquids/gases between a fixed structure and a rotating structure while maintaining continuous 360-degree rotation. For more information please contact us.

Product Details

Specification

ECN025-03P5-14S-01U2-02EG	Specification
Current & Circuits	330A; 1PE; 8* Signal; 21000M Ethernet; 2 RS232; 1 * USB2.0
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥300MΩ@100VDC
Contact resistance wave	≤ 70mΩ
Working temperature	-55°C~+80°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~300rpm

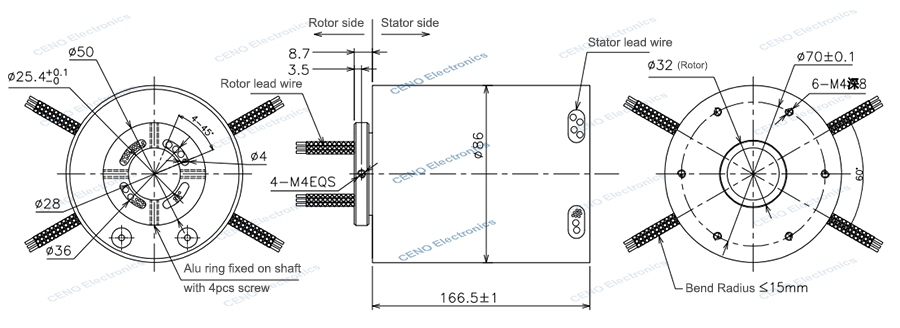

Inner diameter	Ø25.4mm
Outer diameter	Ø86mm
Contact material	Gold-to-Gold; Precious metal
Housing material	Aluminium Alloy
Lead wire size	As customized
Lead wire length	As customized
