ECN000-06P3-07S-IP66 is CENO waterproof slip ring with IP66 protection grade and flange installation for automatic industrial system. Modern manufacturing industries demand high performance applications able to deliver greater productivity, excellent parts quality and lower operation costs in an increasingly environmentally conscious world. CENO’s expert engineers have many years’ experience of combine electric, hydraulic & hybrid technologies to provide you with solutions precisely match your requirements.
Specification
| ECN000-06P3-07S-IP66 | Specification |
|---|---|
Current & Circuits | 6 circuits *12A; 7 circuits * 100mA |
Rating Voltage | 0 ~ 72 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
Electrical noise | Max 30mΩ (50rpm) |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP66 |
Operating speed | 0~20rpm |
Outer diameter | Ø60mm |
Contact material | Precious Metal |
Housing material | Aluminum alloy |
Lead wire size | As customized |
Lead wire length | As customized |

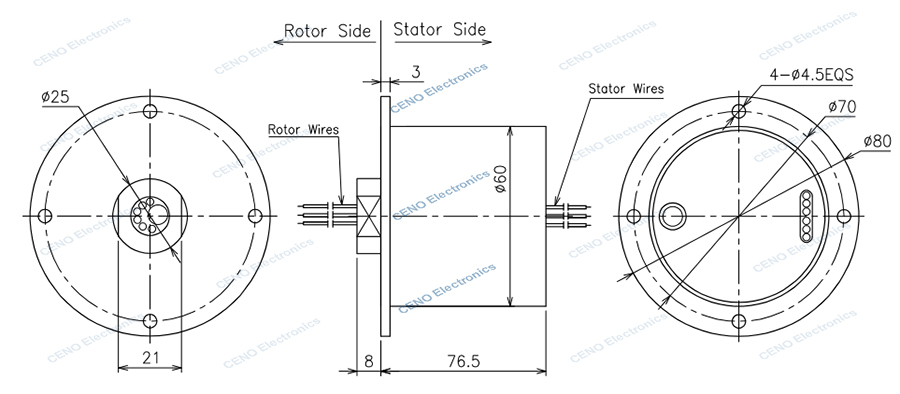

Outline drawing
