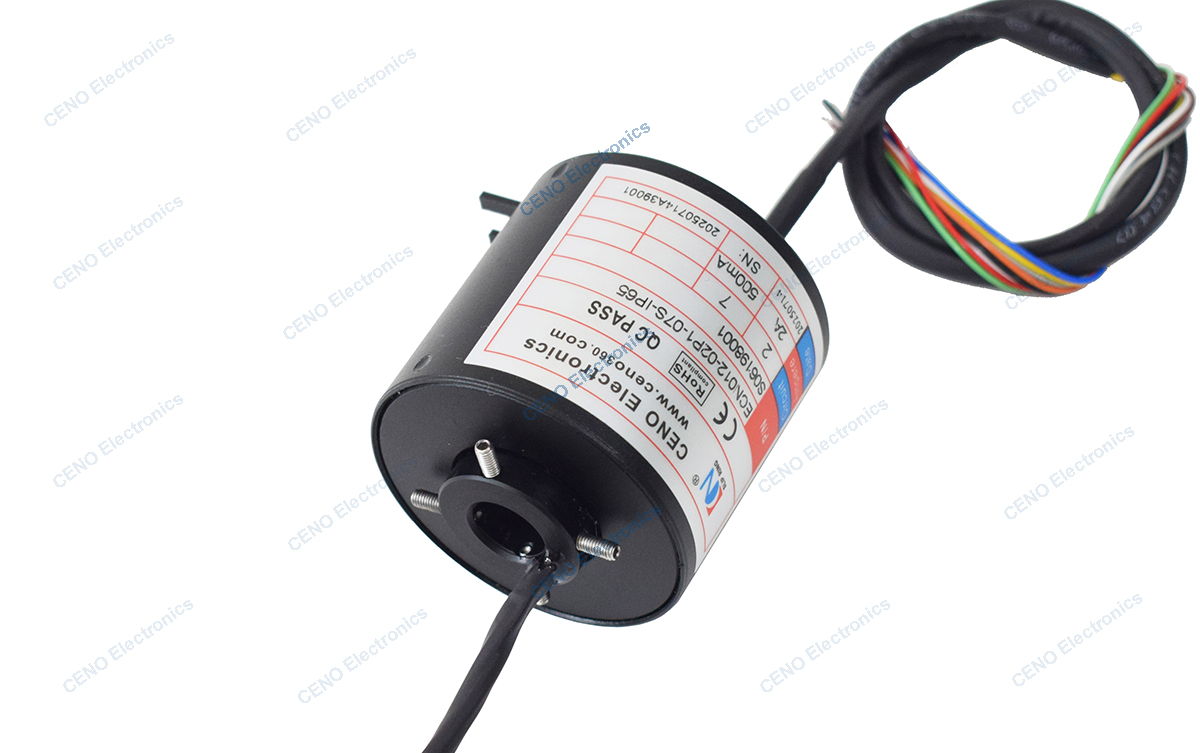

ECN012-02P1-07S-IP65 Water proof Slip Ring

ECN012-02P1-07S-IP65 is CENO water proof slip ring with protection grade ip65 and optional for different application. Water proof slip ring is a general term for slip ring used in special environments such as humidity, corrosion or underwater, which is divided into multiple protecting level for different working environment. Often used in boats and ship, port machinery, drilling platform etc, for more information about how CENO slip ring can fit your application please contact us

Product Details

Specification

ECN012-02P1-07S-IP65	Specification
Current & Circuits	2 circuits * 2A; 7 circuits * 0.5A
Rating Voltage	0 ~ 230 VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+80°C
Working humidity	95%RH
IP protection grade	IP65
Operating speed	0~10rpm
Inner diameter	Ø12.5mm
Outer diameter	Ø56mm
Contact material	Precious metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
Rotation way	Fix up stator side with anti-rotation shaft drive rotor running
