ECN038-04P-19S Water-proof slip ring

CENO's waterproof slip ring not only have high IP protection level, but also integrate various signal. Waterproof grade from IP54-IP68 can be customized. This slip ring model waterproof grade is IP65, low torque, smooth rotation, it transmits power with RS485 signal, control signal. Stable performance with fast working speed, reliable quality, it is widely used in automation equipment .

Product Details

ECN038-04P-19S	Specification
Current	425A,2RS485 signal,17*control signal
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1500V@50Hz(power) ≥500V@50Hz(signal)
Isolation resistance	500MΩ@500VDC(power) 100MΩ@500VDC(signal)
Operating speed	0-300 rpm
Contact material	precious metal
Operating temperature	-20~+60℃
Through bore size	38.1mm
IP protection grade	IP65

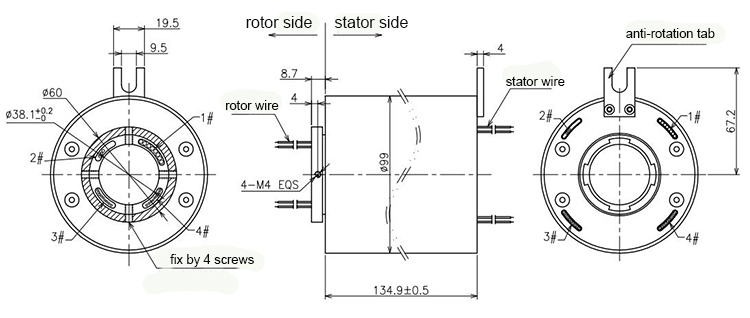

Outline drawing
