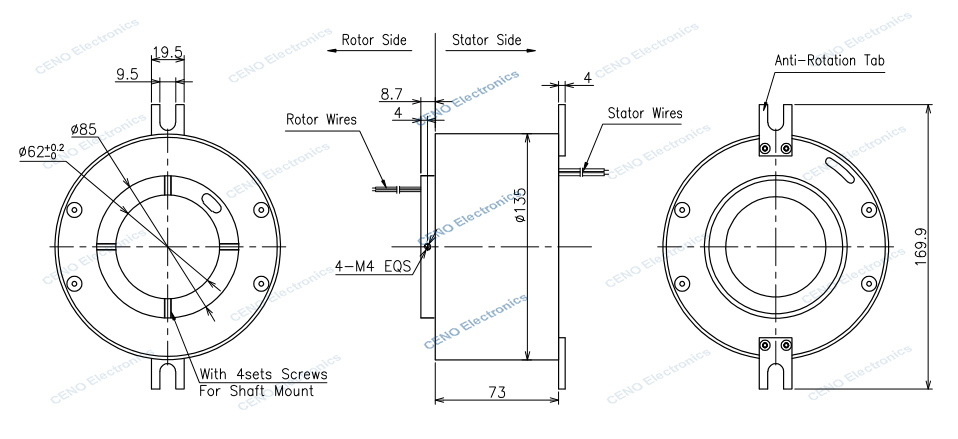

ECN062-02P2-IP65 Water-proof Slip Ring

ECN062-02P2-IP65 is CENO Water-proof slip ring with protection grade IP65. IP65 electrical slip rings are specialized conductive slip rings with a certain degree of dust and water resistance. Their core function is to transmit electrical power/signals between rotating and stationary components while resisting dust and low-pressure water jets, making them suitable for outdoor and harsh industrial environments. Such as the surveillance camera mounts, industrial robot joints and marine rotating radar system etc,.

Product Details

Specification

ECN062-02P2-IP65	Specification
Current & Circuits	2 circuits * 10A
Rating Voltage	0 ~ 240 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~10rpm
Inner diameter	Ø62mm
Outer diameter	Ø135mm
Contact material	Gold to gold
Housing material	Aluminium Alloy
Lead wire size & length	As customized
Rotation Way	Stator side fixed to main shaft
