ECN000-27P-IP65 Industrial Slip Ring

ECN000-27P-IP65 is CENO's new Electrical power slip ring which also named Electrical Collector, Electrical rotary joint, Electrical swivel or rotary electrical joint. It's widely apply to various Electro- mechanical equipment, industrial automatic systems and agricultural automatic machinery. CENO offer a wide range of slip ring to match your parameter, such as Current is 1-10000A, Voltage is 1-30KV, IP Grade can be up to IP68, materials, Boundary dimension and these come in miniature slip ring capsules to large separates.Most of these parameter are optional. For more information about how CENO's slip ring can fit your specific application, please contact us.

Product Details

Specification

ECN000-27P-IP65Specification

Current & Circuits

8circuit*32A; 3circuit*16A; 16circuits*10A

Rating Voltage

0~380VAC/VDC

Dielectric strength

≥1500VAC@50Hz(P)

≥300VAC@50Hz(S)

Isolation resistance

≥500MΩ@500VDC

≥100MΩ@300VDC

Contact resistance

30mΩ (50rpm)

Contact material

Precious metal

Housing material

Aluminum Alloy

Working temperature

-20°C~+60°C

Working humidity

60%RH

IP protection grade

IP65

Operating speed

0~300rpm

Lead wire size

AW12# 10# 16# Wire Teflon® UL

Lead wire length

Rotor : 5000mm

Stator : 8000mm

External diameter

Ø99mm

Rotation way

Flange installation

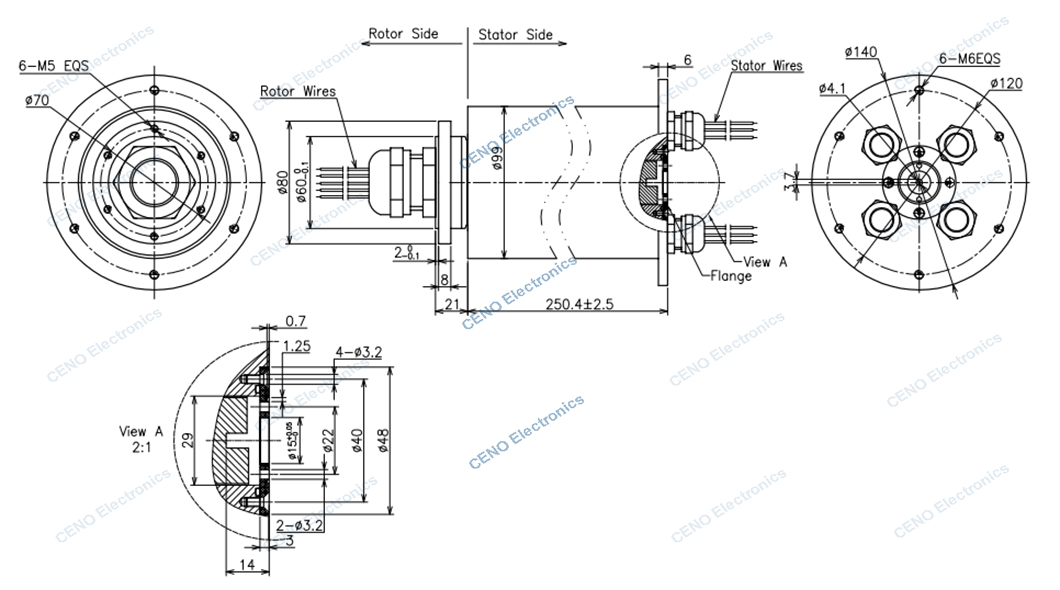

Outline drawing

ECN000-27P-IP65(S06058029) drawing rev
