ECN025-EX-09P5-05P2-02EG Explosion-proof Slip Ring

ECN025-EX-09P5-05P2-02EG is CENO Explosion-proof slip ring with explosion grade Exd I BT3 Gb IP65 and combine circuits electric power and Ethernet signals and equipped on the equipment required anti-explosion. Explosion-proof slip ring is a high-safety, high-reliability conductive slip ring, that can work in explosive environments and is generally used in petroleum, chemical / explosive dust environments. Most parameters are optional for different application. For more information please contact us.

Product Details

Specification

ECN025-EX-09P5-05P2-02EGSpecification

Current & Circuits

9 circuits * 32A; 1 circuits * PE; 5 circuits * 10A; 2 * Ethernet signal

Rating Voltage

0 ~ 380 VAC/VDC

Dielectric strength

≥1000VAC@50Hz; ≥300VAC@50Hz

Isolation resistance

≥500MΩ@500VDC; ≥100MΩ@300VDC

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP65

Operating speed

0~50rpm

Inner diameter

Ø25.4mm

Outer diameter

Ø119mm

Contact material

Precious Metal

Housing material

Aluminium Alloy

Anti-explosion

Exd I BT3 Gb IP65

Lead wire length

As customized

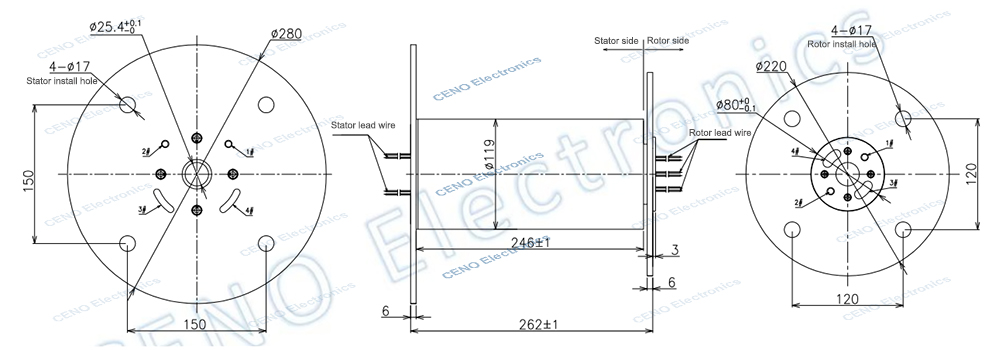

Outline drawing

ECN025-EX-09P5-05P2-02EG drawing rev
