BCN-02P1-08S-01HD-A is CENO small Capsule Slip Ring with circuits signal and high definition video for high definition head. There are two types HD slip ring in CENO including SDI HD and HDMI, which can transmit electric power, signals, HD video signals and high-seep digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO high-definition slip rings use the leading domestic high technology and have the advantages of stable transmission. For more information please contact us.
Specification
BCN-02P1-08S-01HD-A | Specification |
|---|---|
Current & Circuits | 2 * 2A; 8 * Signal; 1 * High-definition video |
Rating Voltage | 0 ~240VAC/VDC |
Dielectric strength | ≥100VAC@50Hz |
Isolation resistance | ≥100MΩ@220VDC |
Contact resistance wave | ≤ 10mΩ |
Working temperature | -20°C~+80°C |
Working humidity | 95 %RH |
IP protection grade | IP51 |
Operating speed | 0~200rpm |
Outer diameter | Ø12mm |
Contact material | Precious metal |
Housing material | Aluminium Alloy |

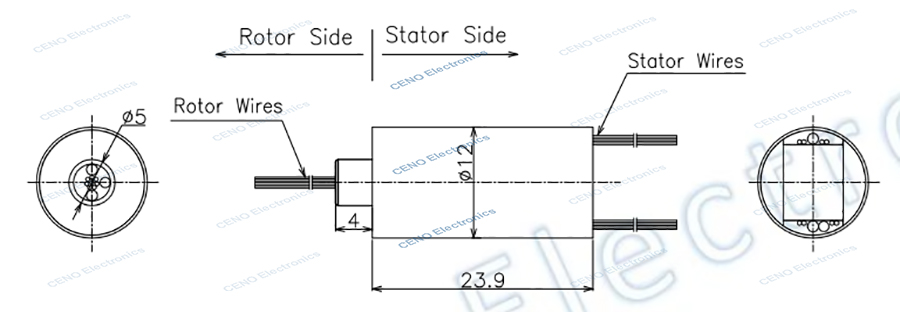

Outline drawing
