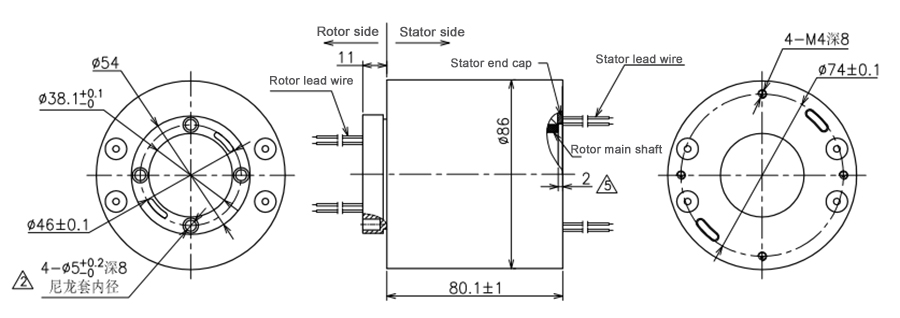

ECN038-04P-01EG Low Temperature Ethernet Slip Ring

ECN038-04P-01EG is CENO Ethernet signal slip ring with through hole 38.1mm and works stably in low temperature environment from -40℃ to +70℃. Ethernet signal slip ring is suitable for the installation of continuous rotating motion, especially for the bending occasions in the industrial environment. CENO provide customized service for different special application. For more information about how CENO slip ring can fit your equipment, please contact us

Product Details

Specification

ECN038-04P-01EG	Specification
Circuits & Current	4 circuits * 6A; 8 * 1000M Ethernet signal
Voltage	24VDC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥500V@50Hz; ≥300V@50Hz
Insulation resistance	500MΩ@500VDC; 100MΩ@300VDC
Operating speed	0-50 rpm
Contact material	Precious metal
Housing material	Aluminium Alloy
Through bore size	38.1mm
Working temperature	-40℃~+70℃
Working humidity	60%RH
IP protection grade	IP54
Through bore size	38.1mm
