ECN012-02P3-08S-01EG is through hole Ethernet Signal Slip Ring with Gigabit Ethernet signal and Electric power for low temperature environment. CENO is a manufacturer dedicated to the professional design, development and production of slip rings, our Ethernet slip ring solutions have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface.For more information about how CENO slip ring can fit your equipment, please contact us
Specification
| ECN012-02P3-08S-01EG | Specification |
|---|---|
Current & Circuits | 2 * 15A; 2 * Signal; 1 * 1000M Ethernet Signal |
Rating Voltage | 0 ~ 28 VAC/VDC |
Dielectric strength | ≥300VAC@50Hz |
Isolation resistance | ≥100MΩ@300VDC |
Working temperature | -40°C~+65°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~200rpm |
Inner diameter | Ø12.7mm |
Outer diameter | Ø56mm |
Contact material | Precious material; Gold to gold |
Housing material | Aluminum alloy |
Lead wire size | As customized |
Lead wire length | As customized |

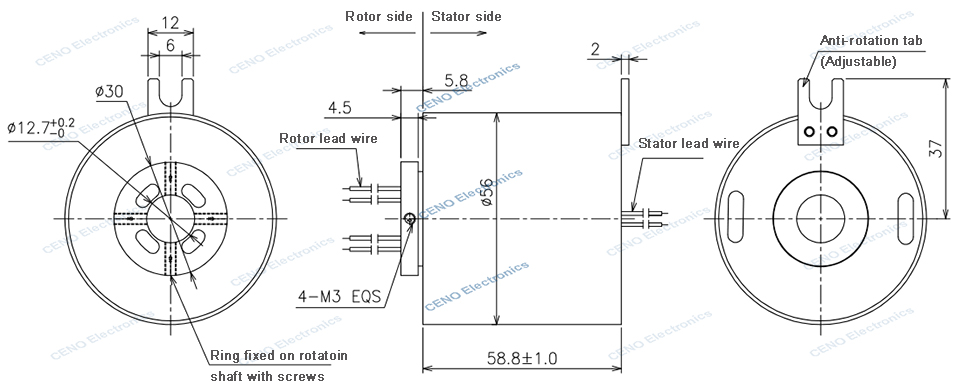

Outline drawing
