ACN22A-06S-GW High temperature Slip Ring Capsule

ACN22A-06S-GW is CENO miniature capsule slip ring with 6 circuits 2A electric signal for the equipment suit for the temperature from -20°C to +180°C. This miniature capsule slip ring is a family of electrical slip rings designed specifically for the extremely harsh high temperature. Can be combined with high temperature and voltage resolver and motors for position and speed feedback and motive power. For more information please contact us.

Product Details

Specification

ACN22A-06S-GW	Specification
Current & Circuits	6 circuits * 2A
Rating Voltage	240VAC/DC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 10mΩ
Working temperature	-20°C~+180°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~10rpm

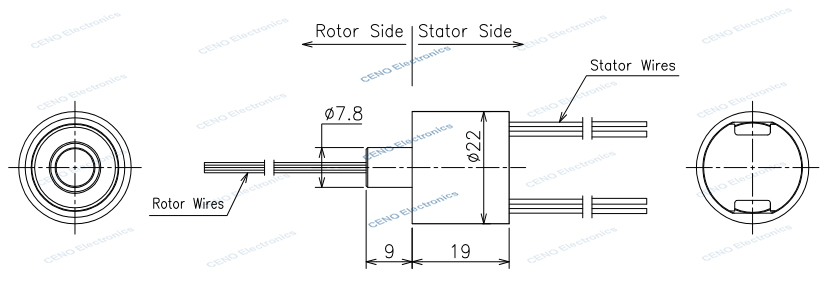

Outer diameter	Ø22mm
Contact material	Precious Metal
Housing material	Engineering plastic
Lead wire size	As customized
Lead wire length	As customized
