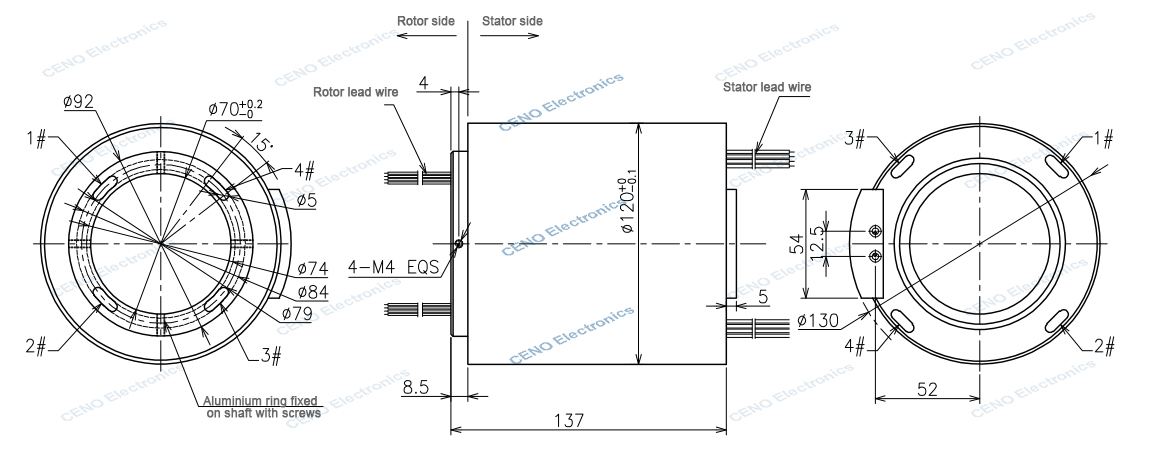

ECN070-16P-05S-01EM Low Temperature Slip Ring

ECN070-16P-05S-01EM is CENO low temperature slip ring with circuits electric power signal and 1000M Ethernet signal for high altitude airborne equipment. CENO low temperature slip ring features high quality and advanced material to support stable performance, ageing resistance and low temperature resistance, construction machinery specially adjusted for harsh working conditions. For more information please contact us.

Product Details

Specification

ECN070-16P-05S-01EM	Specification
Current & Circuits	10 circuits * 10A; 2 circuits * 8A; 3 circuits * 5A; 1 * PE; 5 circuits * 5 Signal; 1 group * 100M Ethernet
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1500VAC@50Hz; ≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@500VDC
Contact resistance wave	≤ 5mΩ
Working temperature	-40°C~+80°C; -45°C~+80°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~250rpm
Inner diameter	Ø70mm
Outer diameter	Ø120mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
